Irritec - Model 961 -Anti-Insect Turbine Sprinkler
FromIrritec S.p.A.
This series of low flow rate sprinklers extends the rate with flow rates of 120 and 160 litres/hour, allowing a reduced precipitation rate while maintaining the level of uniformity. These sprinklers work thanks to a patented turbine mechanism that allows smooth and equilibrated rotation. The single-jet design maintains uniform distribution even with a low flow rate.
Most popular related searches
insect control
sprinkler irrigation
turbine sprinkler
greenhouse nursery
frost protection
crop watering
banana plantation
avocado tree
banana
onion

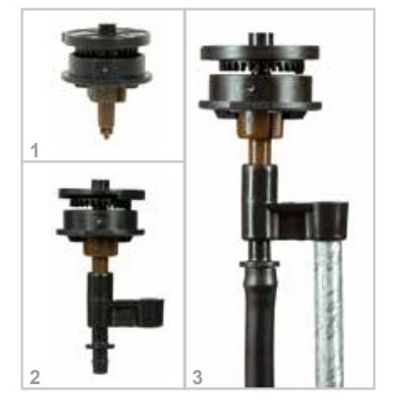

- For general use, for open field or overhead, fixed or semi-fixed (stand) systems, (fig 1-2-3).
- Ideal for crops sensitive to water distribution uniformity, such as vegetables, carrots, potatoes, onions, etc.
- Ideal for cooling and frost-free protection of greenhouses and nurseries.
- Suitable for complete coverage of plantations (bananas, avocados, kiwis, mature trees, etc.).
- Anti-insect, sprinkler closes at the end of the work.
- Integrated filter.
- Available for flow rates; 120 and 160 litres/hour.
- Optimal working pressure from 2.0 to 2.5 bar.
- Spacing: up to 7X7 m.
- Sprinkling diameter; up to 12.5 m.
- Recommended filtration: 60mesh=250micron.
- Raw materials selected to be long lasting.
- Conical plunger m.
- Assembly on stand STDA1 with rod Ø 6mm.

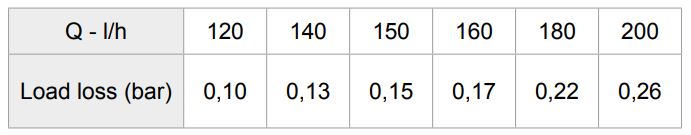

The maximum number of sprinklers on the branch on the flat land is calculated with a flow rate loss of approx. 10%, at the branch start pressure of 2.5 bar minimum.
