Anybus - Bluetooth Wireless Bridge

SHARE

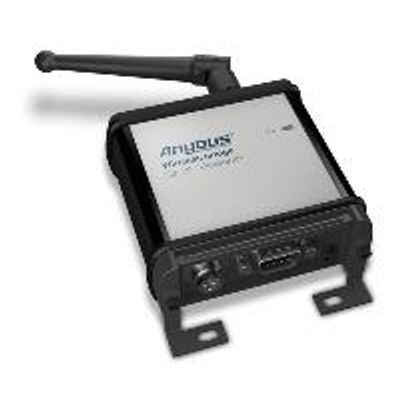

Anybus Wireless Bridge Serial - Bluetooth is a rugged dual-mode Bluetooth (Bluetooth Smart Ready) serial-port adapter with Bluetooth gateway functionality and u-blox Serial Port Service. It allows connection for up to seven serial slaves with an RS-232/422/485 interface over Bluetooth, with a max. range of up to 300 meters.

Most popular related searches
hops

MINIMIZE WIRELESS INTERFERENCES

The Bluetooth Access Point features connectBlue Low Emission Mode® which solves any potential interference between classic Bluetooth and Wi-Fi that is not handled by Adaptive Frequency Hopping (AFH).

Further features implemented include Wireless Multidrop™ with simultaneous connections to both Bluetooth low energy and Classic Bluetooth devices and Extended Data Mode™ for separated multipoint data channels so that different data can be sent to or received from each slave.

EASY CONFIGURATION

The Wireless Bridge dual-mode Bluetooth serial port adapter is easily configured using the Windows®-based configuration program "Toolbox". Advanced configuration can also be made via AT commands.

  • Eliminates the need for expensive or maintenance-heavy cabling
  • Connects up to 7 slaves with a serial RS-232/422/485 interface via Bluetooth
  • Includes Wireless Multidrop™ with simultaneous connections to both Bluetooth devices
  • Extended Data Mode™ for separated multipoint data channels so that different data can be sent to or received from each slave
  • Features a Low Emission Mode®: Prevents disrupting other 2.4GHz radios
  • Effective range of up to 300m or 984ft
  • Easy configuration via ToolBox Windows program
  • Advanced configuration with AT commands
  • Conforms to wireless standards used in Europe, USA, Canada and Japan
  • Rugged IP65 rated industrial design with choice of Antennas and accessories

  • Version: Serial - Bluetooth
  • Dimensions  (L•W•H): 76 x 85 x 35mm or 2,99 x 3,34 x 1,38"
  • Weight: 190g or 0,42 lbs
  • Operating temperature: -30 to +85 °C or -22 to +185 °F
  • Output Power: 13 dBm
  • Power supply: 8-30 VDC
  • Power consumption: min. 9mA at 30V (20mA average at 30V)
  • Enclosure material: Metal
  • Mechanical rating: IP65
  • Mounting: Screw holes for wall mounting
  • Max Range : 300 meters
  • Antenna/Connector: External / Yes (RPSMA)
  • Connectors: Male DSUB (Serial) Binder 712 (Power)

CERTIFICATIONS:

  • Europe: ETSI R&TTE
  • USA: FCC/CFR 47 part 15 unlicensed modular transmitter approval
  • Canada: ICC RSS
  • Japan: MIC - formerly TELEC
  • UL-Haz.Loc: -
  • Security: WEP64, WEP128, WPAPSK, WPA2-PSK, TKIP, CCMP (AES), LEAP, PEAP, EAP-TLS, 802.11i
  • Medical Qualification    IEC 60601-1-2
