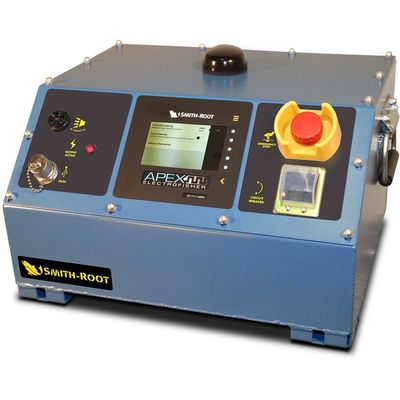

Smith-Root - Model 12038 - APEX ELECTROFISHER SYSTEM
FromSmith-Root, Inc.
Apex electrofishers record electrofishing inputs and outputs every second while displaying them on a beautiful color LCD screen. In the field or the office, download your electrofishing data in seconds via USB then analyze over 20 variables. Dual Channel Outputs, Widest Electrical Output Ranges, Timer Alarm, Help Tutorials, Diagnostic Mode, Animated Waveform, Trend Graphs, GPS Coordinates, Data Recording, Data Download, User Performed Software Upload, and more.
Technical Specifications
Output Power 7,200W continuous AC, 24,000W peak
Output Voltage 0 to 1,200VDC in 1V steps
0 to 240VAC RMS in 1V steps, 339V peak
Output Frequency 1 to 1,000Hz in 1Hz steps
Duty Cycle 0% to 100% in 1% steps
Output Current 80A peak max on low range
Output Waveforms DC, Pulsed DC, Burst of Pulses DC, AC
Waveform Storage Save voltage, frequency, duty cycle, and pulse type for 12 different waveforms
Required Generator 8,000W continuous for max. output 240V at 33A 50/60Hz Floating neutral
