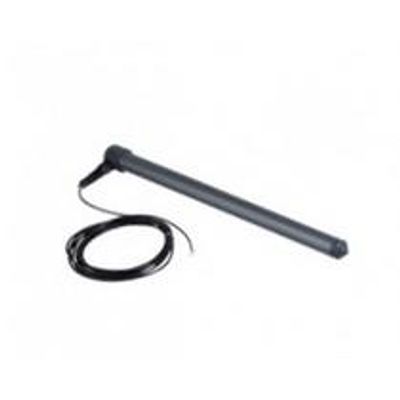

AquaCheck - Sub-Surface Soil Moisture Probes
From Radio Controlled- Sensors
The AquaCheck sub-surface soil moisture probe offers capacitance based soil moisture measurement offering up to six depths or sensors per probe. The probe is dependent on a compatible external logger or remote transmission unit and is available in either SDI-12 or MODBUS configurations.
Specification
General Specifications:
- A capacitance based continuous logging probe.
- Probe lengths from 400mm to 1200mm.
- Up to 6 soil moisture and 6 soil temperature sensors depending on the probe length.
- Shaft diameter: 32mm.
- Up to 6 sensors or depths per probe.
- Can be used for pastures or other sub-surface measurement applications.
- Communication Interface options: SDI-12 (serial data interface, 1200bd), MODBUS, 2400bd
- Compliancy: CE certified.
- Supplied with a 5m 3-core cable.
Technical Specifications:
- Voltage input: 4-12V for standard models; 9-16V option available on BASIC II (on request).
- Power requirement: 10uA (0,01mA) during idle; 20mA for 2 seconds during measurement.
- Sensor Spacing: 10cm or 20cm (fixed).
- Sensor reading count: approximately 32000 for air and 1000 in water.
- Sensor resolution: Approximately 13 bits.
- Temperature Sensor: 0-51 Deg C, steps of 0.2 Degrees.
- External power supply required.
