Arvo-Tec - Model WOLF - Aquaculture Feeding Control System
The Arvo-Tec control unit WOLF is a fully integrated feeding, measurement, photo period-light control and alarm system.
The system uses environmental parameters like water temperature, oxygen content and biomass as initial data and controls feeding according to mathematical energy demand model.
The system estimates fish growth based on the feed conversion factor. There are a number of fish species available as pre-programmed options and level of feeding can be adjusted as needed manually. Pre-set feeding formulas for several fish species.
Control the day/night cycle of through photo period control. Inbuilt generator controls & optional battery for barge based operation.
Menu driven display in control unit or an optional MS Windows based
PC-connection with web-based software.

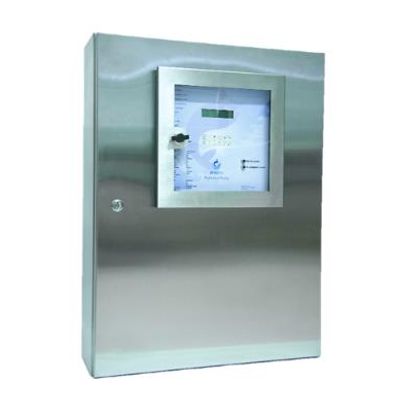

Arvo-Tec controller is cased in stainless steel cabinet for extreme conditions
- 115 OR 240 VAC
- 8,16,24 OR 32 INDEPENDENT FEEDER CHANNELS
- PER CONTROL UNIT
- MAXIMUM 30 CONTROL UNITS IN ONE SYSTEM = 960 CHANNELS
- CABLE, RADIO, TCP/IP AND MOBILE COMMUNICATION OPTIONS
- 8 MEASUREMENT INPUTS PER CONTROL UNIT
- 5 DIGITAL SENSOR INPUTS (E.G. LEVEL SWITCH CIRCUITS)
- 2 ALARM/CONTROL OUTPUTS PER CONTROL UNITS
- OPTIONAL MS WINDOWS BASED PC-CONNECTION
