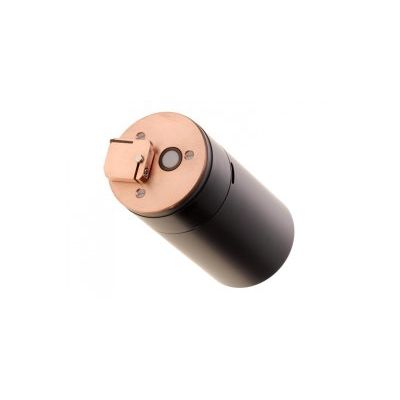

ECO-PAR - Aquatic PAR Sensor

Satlantic and WET Labs have partnered to develop the ECO-PAR sensor, which provides highly accurate measurements of PAR (400–700 nm) in all aquatic environments.

Equipped with quality precision optics and proven Bio-wiper technology, the ECO-PAR sensor can be deployed for extended periods without a reduction in data quality caused by biofouling. Additionally, the ECO-PAR has optional internal data logging and power capabilities, precluding the need for an external logging device and battery pack.

Research applications

• Long-term monitoring on moorings and buoys
• Water quality studies
• Phytoplankton physiology and photosynthesis studies
• Aquatic productivity studies

Specifications

Mechanical

Diameter: 6.3 cm
Length: 12.7 cm
Weight in air: 0.4 kg
Weight in water: 0.02 kg
Pressure housing: Acetal copolymer
Temperature range: 0–30 deg C
Depth rating: 200 m

Optical

Collector area: 86 mm 2
Detectors: 17 mm 2 silicon photodiode
Field of view: Cosine response (within 3% @ 0–60 deg C)

Electrical

Digital output resolution: 14 bit
RS-232 output: 19200 baud
Analog output signal: 0–5 V
Internal data logging: optional
Internal batteries: optional
Anti-fouling Bio-wiper: optional
Bio-wiper cycle: 140 mA
Input: 7–15 VDC
Current, typical: 80 mA
Current, sleep: 85 µA
Data memory: 90,000 samples
Sample rate: to 8 Hz
Connector: MCBH6M
