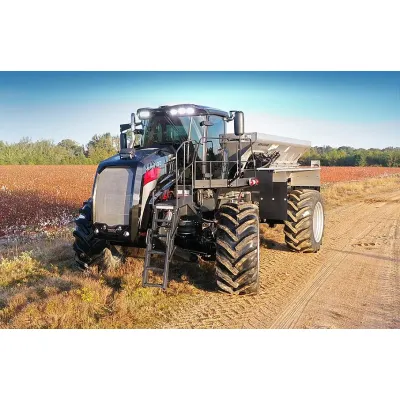

RBR Enterprises - Model Vector 430 - Arobust and Versatile Application Machine
The Vector 430 by RBR Enterprises is a robust and versatile application machine designed to enhance agricultural productivity. It is equipped with an extended frame and a New Leader 16-foot box, which, combined with increased Meritor axle capacity, allows the Vector 430 to surpass the standard payload by 25%, accommodating a 14-ton bed capacity. Powered by a 430 HP engine with selectable 4X4 capabilities, it ensures high efficiency and performance across various field conditions. The mechanical drive system optimizes road speeds to maximize field coverage per day, significantly reducing non-revenue generating drive time. The Vector 430 also offers the versatility to switch between different tire types for pre and post-planting operations, ensuring year-round revenue generation. Its operator-centric cab is designed for maximum focus and efficiency, featuring intuitive controls and comprehensive information accessibility to enhance operational safety and effectiveness.
The new Vector 430 features top-tier components and enhancements that are setting the bar for application machinery. With an extended frame, New Leader 16-foot box and increased Meritor axle capacity, the Vector 430 surpasses the standard Vector payload by 25% with a 14-ton bed capacity. Complete with a 430 HP engine and 4X4 capabilities, this machine offers unequaled performance and productivity.
TRANSFER SPEED
Our mechanical drive system allows for higher road speeds to maximize acres covered per day and minimize non-revenue generating drive time.
MULTI-SEASON REVENUE
With the capability to swap between a variety of row crop and flotation tires, the Vector offers the versatility of a pre and post plant machine, generating revenue all season long.
MINIMIZE LOAD TIME
Spend less time loading and more time generating revenue with the largest capacity row crop spreader on the market.
OPERATOR COMFORT
The cab is designed specifically for application equipment to create an environment for maximum focus and efficiency. Controls and information are easily accessible and intuitive, providing all the information necessary to assist the operator in safe and effective machine operation.
SELECTABLE 4X4
With the ability to select between 2X4 and 4X4, you can have the confidence your machine will perform in the most adverse conditions
- ENGINE MAKE / DISPLACEMENT : Cummins QSL 9 Liter Tier 4F with Compact Catalyst (CCC) and Selective Catalytic Reduction (SCR)
- HORSEPOWER @ 2000 RPM : 430HP
- FUEL / DEF CAPACITY : 150 gal / 15 gal
- TRANSMISSION : Allison Automatic 3000 RDS with Dual Mode Shift Select & Shift-Lock
- TRANSFER CASE : Marmon Herrington 2-speed 2.5:1 ratio (5 speed low range / 4 speed high range)
- 4 WHEEL DRIVE : Selectable 2x4 - 4x4, Standard on all axle configurations
- AXLES - STANDARD FIXED TRACK : AxleTech 5000 series double reduction plantery (29,000# Front / 29,000# Rear)
- AXLES - OPTIONAL ADJUSTABLE WIDTH / 4-WHEEL STEER : Variable Track Axle (VTA) – Axle Tech adjustable wheel track 114in to 144in, 4-wheel steering (32,000# front / 32,000# rear
- SUSPENSION : High Capacity Air-Ride Suspension with Heavy Duty Shocks, in-cab airbag dump, greaseless torque rods with extended-life polycarbonate bushings
- CAB CONTROLS : 7" Touch screen engine monitor with interactive diagnostics
- CAB HVAC : Auto Climate Control
- CAB RADIO : FM/AM/XM Radio with CD and Bluetooth
- CAB COMMUNICATION : Remote Chassis Telematics - Subscription Free
- CAB OPTIONS : Heated and Ventilated Leather Seat, Leather Wrapped Steering wheel, High-Intensity LED Lighting, and Window Tint
- FRAME : 10" x 4" x 3/8" High Strength Tublar Steel with 40 mil Polyurea Coating
- OVERALL LENGTH : 292 in. (7.41 m)
- WHEELBASE : 168 in. (4.26 m)
- OVERALL WIDTH : 135 in. (3.4 m)
- OVERALL HEIGHT : 147 in. (3.73 m)
- WEIGHT - SINGLE PRODUCT : 22,480 lbs.
- WEIGHT - DOUBLE PRODUCT : 23,600 lbs.
- WEIGHT - TRIPLE PRODUCT : 24,000 lbs.
