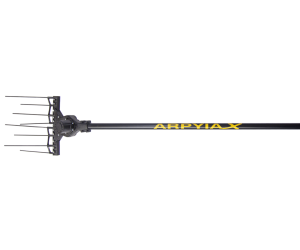

Arpyia - Model X - Olive Harvester
From Olive Harvester
The new ARPYIA X is pioneering because its : the most resistant 100% greek construction machine (3 years warranty). The only olive harvester with direct use in generator and battery (without additional stabilizer). The only greek olive harvester of its category with a telescopic extension. Reinforced and waterproofed control boards. Possibility of use with lithium battery.
-
Most popular related searches
Technical Specification
- Type of movement: Pulse motion with vibration
- Type of head: 2 cams, 2 rods steely gears ,6 carbon fiber sticks
- Rpm of the head: 700 – 1450 rpm @ 12V DC
- Motor: 750 Watt
- Output: 200 – 250 kg olive seed/hour
- Initial length: 2,30m ( 3,3m with extension)
- Weight: 2,2kg
- Extension: Optional Extention 1.0m

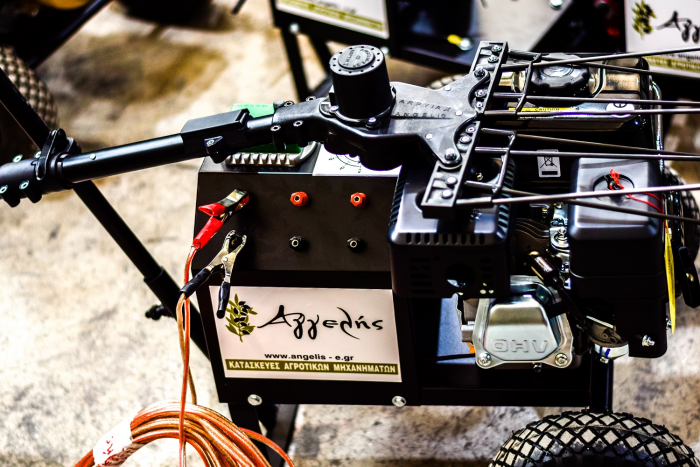

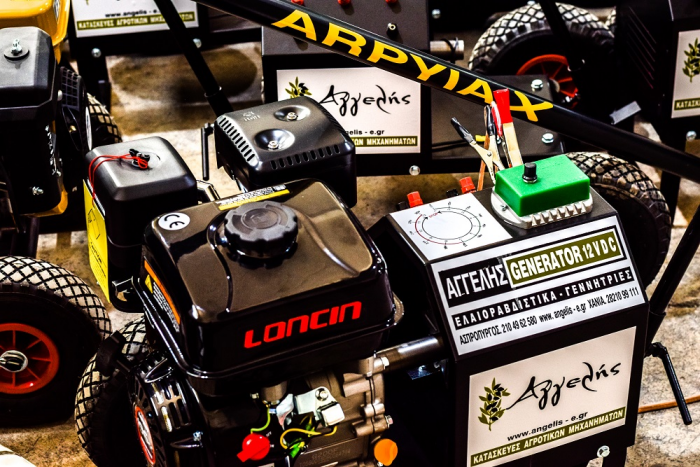

- Cable length: 15m for generator or battery use
- Average consumption: 8A /hr
- Type of head: 2 cams, 2 rods steely gears ,6 carbon fiber sticks
- Rpm of the head: 700 – 1450 rpm @ 12V DC
- Motor: 750 Watt
- Output: 200 – 250 kg olive seed/hour
- Initial length: 2,30m ( 3,3m with extension)
- Weight: 2,2kg
- Extension: Optional Extention 1.0m
- Cable length: 15m for generator or battery use
- Average consumption: 8A /hr
Movement
The new Arpia X is equipped with the new brushless engine with speed regulator so you can adjust the pulse vibration of the machine according to the needs and type of the olive.
The 6 operating levels ranging from 750 to 1450 vibrations per minute and the high torque at low RPMs make the Arpiya X the ultimate tool for harvesting the olive trees.

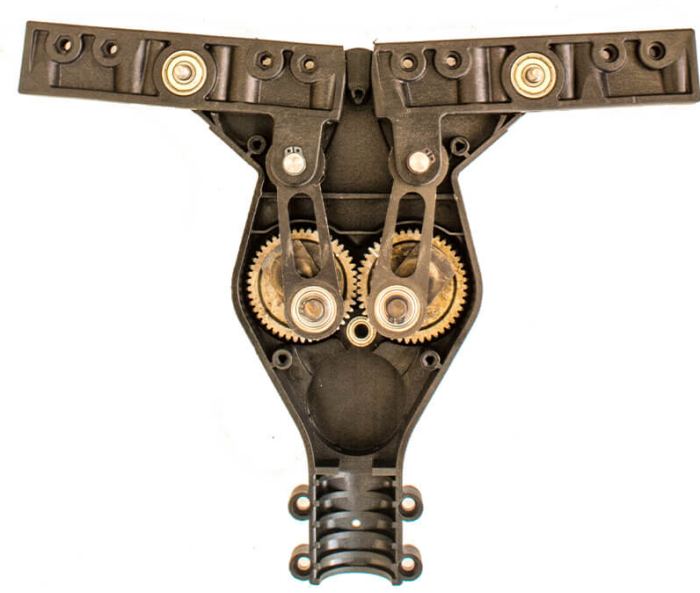

Head
Apria X is a double-head olive harvester with carbon fiber
- 2 cams,
- 2 rods gears from steel
- 6 carbon fiber sticks
A unique structure of 8 carbon-fiber sticks in two separate bases .Each base rolls firmly 4 carbon fiber with special elastic own moldThe two bases form a V-shaped moving opposite to one another managing opening and closing 54 points strictly controlled to avoid clipping

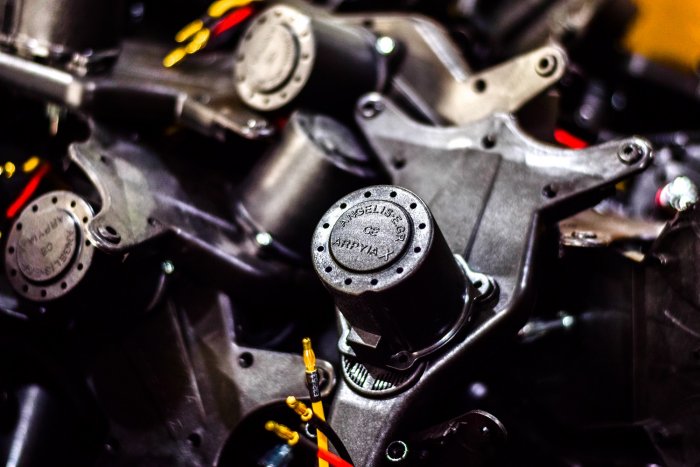

Motor

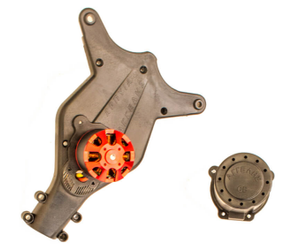

Efficient Brushless 750W Motor

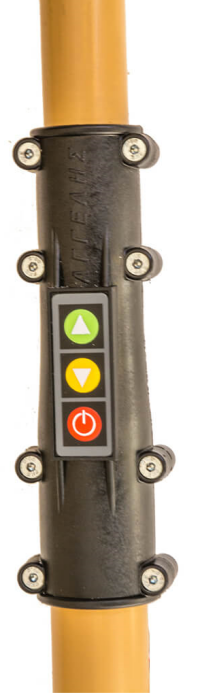

The 6 level speed controller gives Arpia the range of 600-1350 pulses per minute at 12v to cover even the most demanding users.
The new brushless motor technology helps the Arpia X to have high torque at low RPMs for better harvesting of edible olives (Can work up to 20V DC)
It works with 80A battery for 8 hours
