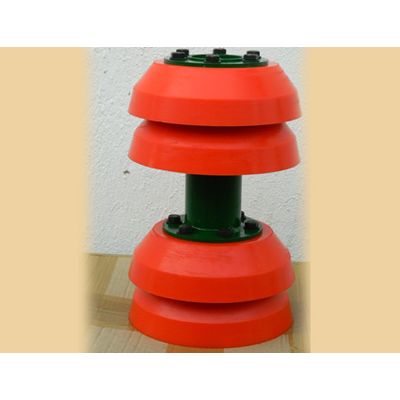

ARR - Cup or Batch Pigs
ARR Cup Pigs or Batch Pigs are used for a wide range of operational maintenance operations. The flexible nature of ARR cup pigs allows safe running in lines with ovality or scale build-up and the pigs can be provided with low or high aggression. Designs are available, with standard cups and caliper cups. The cup pig design is provided with 2, 3, or 4 cups and can be further enhanced with the addition of guide discs, for increased cleaning efficiency. ARR has a reputation for reliability and expertise in pig design for difficult pipelines.
Most popular related searches
Standard Features
- Standard Cup for short runs and long runs
- Carbon Steel or Stainless Steel (High Tensile Bolts c/w Locking Nuts)
- Pigging Cups – High-Grade Polyurethane Elastomer (2 to 4 cup configurations)
- Polyurethane Bumper Noses c/w Bypass Slots
- Bore Passing Up to 20% bore restrictions
- Minimum Bend Radius 1.5D
Optional Features
- Cleaning Brushes (Carbon Steel, Stainless Steel, or Nylon)
- Slotted or Grooved Guide Discs (for diameter changes or wax scraping)
- Dewaxing / Descaling studs
- Gauging Plates
- Mounting for Pig Tracking Device
- Long Run Support / Guide Discs
- Jetting / Bypass Nozzles for debris flushing and blockage prevention
- Magnet Packs for scale collection or detection
