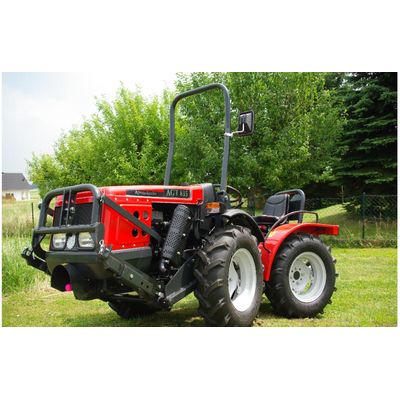

Agromehanika - Model AGT 830/835 Stage 3A - Articulated Tractor
Tractors AGT 830/835 are not suitable for sale in the EU. AGT 830/835 series articulated tractors were designed for work in vineyards, orchards, small farms, and for different utility operations. A small turning circle of only 290 cm is possible due to its articulated design, enabling unprecedented maneuverability and work in narrow spaces and difficult terrains.
AGT 830/835 series articulated tractors were designed for work in vineyards, orchards and small farms. A small turning circle of only 290 cm is possible due to their articulated design, enabling unprecedented manoeuvrability and work in narrow spaces and difficult terrains. There are two engines available, developing 19 kW (26 HP) and 28 kW (38 HP).
A wide range of optional equipment allows adapting your tractor to perfectly suit your needs.
Both tractor versions are equipped with a 9-speed mechanical gearbox. Two speed groups and three gears together provide 6 forward and 3 reverse gears. An even weight distribution when using attachments and better traction is ensured by a low gravity centre and the front axle situated behind the engine.
AGT 830/835 series tractors are distinguished by:
- permanent four-wheel drive,
- articulated transmission,
- a wide selection of rims and tyres,
- simultaneous four-wheel braking with permanent drive,
- front-axle oscillating angle of 15° for better wheel-ground contact on uneven terrains,
- small turning circle,
- front differential lock,
- side wheel reduction gears,
- low operating costs,
- safe and easy operation,
- simple and cost-effective maintenance.
- AGT 835 series tractors are also available in a special forestry version and narrow (100 cm) version.
AGT 830/835 tractors are equipped with high-performance engines by a world renowned Italian manufacturer Lombardini – Kohler.
AGT 830/835 series tractors are equipped with an articulated chassis. Thanks to a 15° front-axle oscillating angle and a permanent four-wheel drive, all four wheels remain in constant contact with the ground on various terrains, slopes and under different conditions. Hydraulic steering enables effortless control of the tractor and a small turning circle (290 cm) ensures manoeuvrability in narrow spaces.
All tractors are equipped with a four-wheel drive. The 9-speed mechanical gearbox provides 6 forward gears and 3 reverse gears. With two speed groups and three gears, the tractor is able to reach working speeds between 1.7 km/h and 19.5 km/h.
During braking, the braking force is equally distributed between the four wheels. Mechanically controlled drum brakes installed on the rear wheel axle also enable selective independent braking of the left or right rear wheel. The tractors are equipped with mechanically controlled rear differential lock. Braking power is transmitted to the front wheels by a permanent four-wheel drive.
As standard, the AGT 830/835 series tractors are equipped with a rear PTO shaft enabling two different speeds of rotation (540 or 1,000 rpm). The PTO shaft rotates independently of the driving direction.
Optionally, the tractor can also be fitted with the front PTO shaft (see OPTIONAL EQUIPMENT).
The hydraulic system is controlled by a hydraulic pump with a capacity of 26 l/min and operating pressure of 160 bar (adjustable up to 180 bar). The rear hydraulic lift system provides a three-point hitch linkage system of category I, with a lifting force of up to 800 kg. As standard, the tractor is equipped with a single-acting valve for the rear hydraulics, one single-acting valve with a quick coupling and adouble-acting valve with two quick couplings at the rear.
Our top priority is ensuring safe and comfortable work for users of the machine. For this purpose, the tractor is fitted with two safety arches, a safety belt and protective cover for the PTO drive shaft. For additional safety, the tractor can be equipped with an open cab to provide additional protection and a comfortable working environment for the user. The operator’s seat and the steering wheel are both adjustable to allow for a complete adaptability to user’s requirements and a well-arranged instrument panel and a good view on the tractor’s surroundings enable complete control over steering.
Standard equipment of the tractor is designed for versatile use and a wide range of optional equipment allows for a complete adaptability to your needs and requirements.
Due to their quality design and manufacture with high-quality integrated components our tractors are well-known for their simple and cost-efficient maintenance. We provide a fast and efficient service with original spare parts always in stock to make sure your tractor remains in top shape throughout its entire life-cycle.
Optionally, your tractor can be equipped with:
- larger and wider wheels of different profiles with additional optional adjustment,
- additional hydraulic valves,
- open tractor cab,
- front hydraulics,
- accessories for rear hydraulics (lower link arms with quick hitch points, hydraulic 3-point linkage etc.), which contribute to easier and more accurate work,
- ballast weights for greater stability of the tractor,
- comfortable seat with a headrest and an armrest,
- metallic black and gold colour,
- many other accessories.
