Angelis
Asteras - Model CF -Carbon Fiber Olive Harvester
FromAngelis
The olive harvester Asteras CF 4x4 is a machine with 2 heads and 32 carbon fiber sticks. The unique layout of carbon fiber along with the wide range balanced pulse motion, achieves maximum performance without the slightest damage on the tree.
Most popular related searches
olive harvesting system
olive harvesting
electric olive harvesting
electric olive harvesting system
olive harvesting machine
harvesting system
olive seed
olive tree
electric harvester
tree damage
- Type of movement:
- Pulse motion with vibration
- Technology 4x4
- Construction material: Carbon Fiber Tube

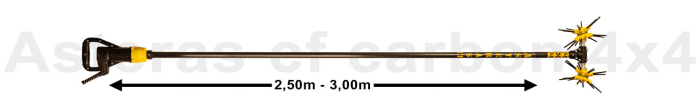

- Initial length: 2,50m – 3,00m

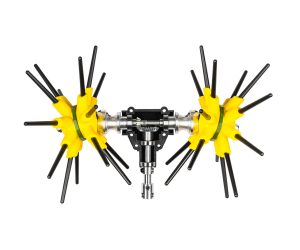

- Type of head: 32 conical carbon fiber sticks
- Weight: 2,90kg
- Rpm of the head: 2000 rpm @ 16V DC

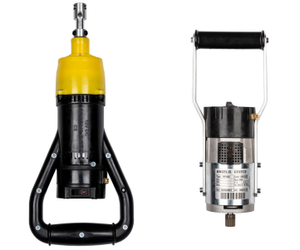

- Motor:
- 14-16V/ 400W
- 28-30V/ 400W *concerns 24V motors
- Cable length: 15m
- Output: 200 – 250kg olive seed
- Average consumption: 8A / hour
- Power supply: Generator or battery (80A – 100A) with converter
With the NEW SYSTEM (Independent movement of the spheres) 4x4 is achieved:
- It move freely in the densest parts of the olive tree
- Minimize damage to fruits and olives
- Relaxed usage after transferring zero vibrations to the user.
Asteras CF* is a Greek olive harvester machine with counterweights T8 aluminum
2 cams,
32 conical carbon
Elastomeric material advanced technology
Steel gears
Zero damage
Absolute balance
*Ability to add the 4x4 system to all types of Astera
- BOSCH electric DC 400W performance 2000 rpm @ 16V DC.
- With switch οn-off 35A and a pulse converter.
- It also works with a car battery (with the addition of a converter), with consumption 10-12A /hr.
- Comes with cable 15 meter.
