Power Trac - Model PT-2430 - Attachment
FromPower Trac

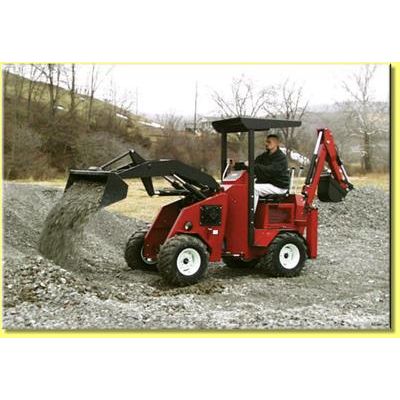

1,200 lbs. lift capacity. 30HP diesel engine. 8’ lift height. 53” wide. 40 attachments offered. Hydraulic Operated Quick Attach. 4-wheel Hydrostatic Drive. Infinitely Variable Speeds. Independent wheel motors. Price Information. Articulated steering: +/- 45 degrees. Oscillates +/- 12 degrees. PT-1430 is ideal for professional landscapers, rental stores, homeowners and horse barns.
Most popular related searches
2430 Control Panel
- Steering Wheel
- Joystick: controls arms’ lift and tilt functions
- Throttle and Choke control
- Draft Control
- Ignition
- PTO switch
- Hourmeter
- Light switch
- Gauge with engine temperature, oil pressure, fuel and voltage
2430 Operator’s Compartment
- Two-toe treadle controls speed
- Press right pedal to go forward
- Press left pedal to go reverse
- Centering the pedal acts as a service brake
- Auxiliary PTO is above operator’s right knee
- Park Brake is above operator’s left knee
- Control backhoe with 2 joysticks
- A right or left motion on the right joystick controls the bucket’s up or down motion and an up or down motion controls the arm’s in and out motion
- A right or left motion on the left joystick controls the swing and an up or down motion controls the boom’s up and down motion
- Engine: 30HP Diesel
- Weight: 3,850 lbs.
- Speed: 0-8 mph
- Tires: 26-12:00x12, 4-ply, bar or turf
- Ground Clearance: 9”
- Frame: 3/8” to 1/2” Steel Plate
- PTO: 12GPM @ 2,500 PSI
- Fuel Tank: 5 gallon
- Hydraulic Oil Tank: 8 Gallon 10W40
- Lift Capacity: 1,200 lbs.
- Lift Height: 8’
- Inside Turning Radius: 50”
- Outside Turning Radius: 108”
- Wheel Base: 63”
- ROPS: Standard
2430 Backhoe Specifications
- Reach: 9’6”
- Breakout Force (bucket curl): 3,000 lbs.
- Digging Depth: 7’
- Bucket Widths: 12” & 18”
- Swing: 60° both directions
- Outrigger: vertical slide
