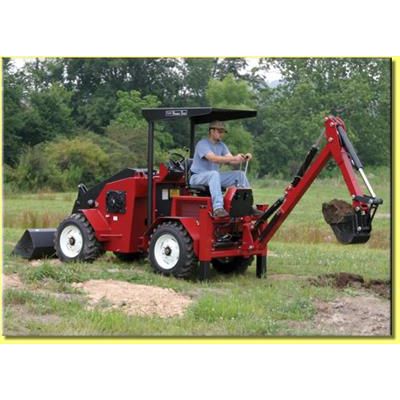

Power Trac - Model PT-2445 - Attachment
1,800 lbs. lift capacity. 45HP diesel engine. 9’ lift height. 56” wide. 30 attachments offered. Hydraulic Operated Quick Attach. 4-wheel Hydrostatic Drive. Infinitely Variable Speeds. Independent wheel motors. Price Information. Articulated steering: +/- 45 degrees. Oscillates +/- 12 degrees. PT-2445 is ideal for professional landscapers, rental stores, rock scaping and construction sites.
2445 Control Panel
- Steering Wheel
- Joystick: controls arms’ lift and tilt functions
- Throttle and Choke control
- Draft Control
- Ignition
- PTO switch
- Hourmeter
- Light switch
- Gauge with engine temperature, oil pressure, fuel and voltage.
2445 Operator’s Compartment
- Two-toe treadle controls speed
- Press right pedal to go forward
- Press left pedal to go reverse
- Centering the pedal acts as a service brake
- Auxiliary PTO is above operator’s right knee
- Park Brake is above operator’s left knee
- Control backhoe with 2 joysticks
A right or left motion on the right joystick controls the bucket’s up or down motion and an up or down motion controls the arm’s in and out motion
A right or left motion on the left joystick controls the swing and an up or down motion controls the boom’s up and down motion
2445 Tractor Specifications
- Engine: 45HP Diesel
- Weight: 4,260 lbs.
- Height: 88” (to top of canopy)
- Speed: 0-8 mph
- Tires: 10:00x16.5 Loader, 6-ply; Tractor width- 56”
- Optional Tires: 31-15:50x15 Turf, 4-ply Tractor width- 63”
- Ground Clearance: 9”
- Frame: 1/4” to 3/4” Steel Plate
- PTO: 12GPM @ 3,000 PSI
- Fuel Tank: 15 gallon
- Hydraulic Oil Tank: 15 Gallon 10W40
- Lift Capacity: 1,800 lbs.
- Lift Height: 9’
- Inside Turning Radius: 4’5”
- Outside Turning Radius: 9’6”
- Wheel Base: 73”
- ROPS: Standard
2445 Backhoe Specifications
- Reach: 10’
- Breakout Force (bucket curl): 3,500 lbs.
- Digging Depth: 8’
- Bucket Widths: 12” & 18”
- Swing: 60° both directions
- Outrigger: vertical slide
