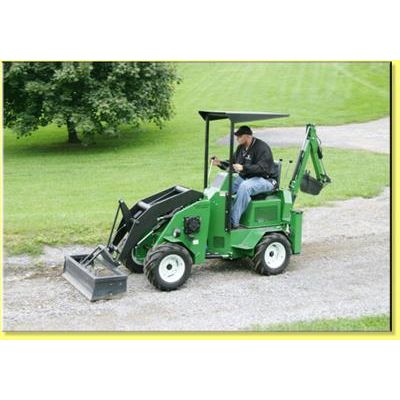

Power Trac - Model PT-2425 -Attachments

• Articulated Steering +/- 45 degrees
• Oscillates +/- 12 degrees
• 2425 is ideal for professional landscapers, rental stores, homeowners and horse barns.

2425 Control Panel

• Steering Wheel
• Joystick:  controls arms’ lift and tilt functions
• Throttle and Choke controls
• PTO Switch
• Hourmeter
• Light Switch

2425 Operator’s Compartment

• Two-Toe Treadle:  controls speed
• Press right pedal to go forward
• Press left pedal to go reverse
• Centering the pedal acts as a service brake
• Auxiliary PTO is above operator’s right knee
• Park Brake is above operator’s left knee

• Control backhoe with 2 joysticks
• A right or left motion on the right joystick controls the bucket’s up or down motion and an up or down motion controls the arm’s in and out motion
• A right or left motion on the left joystick controls the swing and an up or down motion controls the boom’s up and down motion

• Weight w/o backhoe: 1,725 lbs.
• Weight w/ backhoe: 2,130 lbs.
• Speed: 0-8 mph
• Tires: 23-10:50x12
• Ground Clearance: 8”
• Frame: 3/16” to 1/2” Steel Plate
• Height: 83”
• Width: 45”
• Length: 83”
• PTO: 8GPM @ 2,500 PSI
• Fuel Tank: 5 gallon
• Hydraulic Oil Tank: 5 Gallon 10W40
• Lift Capacity: 800 lbs.
• Lift Height: 7’
• Inside Turning Radius: 45”
• Outside Turning Radius: 94”
• Wheel Base: 56”
• ROPS: Standard

• Reach: 8’4”
• Breakout Force (bucket curl): 2,500 lbs.
• Digging Depth: 6’
• Bucket Widths: 9”, 12”
• Swing: 60° both directions
• Outrigger: vertical slide
