Automated Pouch and Bag Sealing System

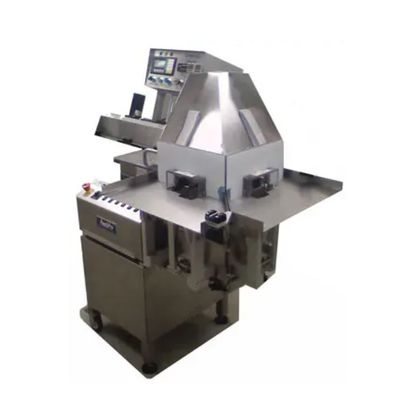

The Urania PouchPro is an automated pouch and bag handling system that is designed for end-users whose packaging requirements use multiple steps. The PouchPro is a pouch and bag sealer that processes any type of flat pouch or bag using a four-position indexing system and vacuum technology. The four-position system allows for multiple processes on each pouch and bag and can be run in a “double-out” configuration, processing two pouches at a time for increased cycle rates. Pouches are sealed using our Model 5000P rotary band heat sealer and product loading can be manual, semi-automatic, or fully automated. A wide variety of options and peripherals are available for integration.
The magazine for the PouchPro system is designed to easily accommodate most flat type pouches regardless of size or material. The magazine holds approximately 1000 pouches or bags (2000 in double-out) to minimize operator involvement and can be replenished in minutes. Pouches or bags of different sizes can be processed using drop-in type spacers to control magazine height or width.
A four-position indexer is used to cycle each pouch through 90 degrees of rotation per cycle. Position one is used to remove each pouch/bag from the vertical magazine, while positions two through four are used for other operations required by the customer. Each of the four positions has a pickup plate specifically designed for that customer’s pouches/bags and use vacuum cups for optimal control.
PouchPro systems can easily accommodate a peripheral labeling or printing system. We can integrate with most brands and can make recommendations based on our many successful projects.
We can design and construct custom stands for easy adjustment or rely on existing mounting systems.
Loading operations on PouchPro systems can be as simple as an operator dropping an item into an open pouch, or as complex as automatically loading a medical device and desiccant simultaneously from an infeed system. Custom load stations can be designed and integrated to meet your preferred handling process. Load stations are always designed using input from the end-user and are operator friendly and safe.
PouchPro systems use our latest model rotary band heat sealer for sealing operations. The PouchPro is ideal for medical device sealing, life science sealing, and food packaging sealing applications. Sealers are fully validatable for speed, temperature, and seal force.
