FutureCow - Model UdderMister Series - Automated Teat Dip Sprayer

The Udder Mister 1.0 and 2.0 teat dip sprayer is built to last under tough conditions.   The system automatically sprays teats with your preferred pre-dip or post-dip solution. As a result, it fully coats and protects teats from mastitis-causing bacteria between milkings.

• The Udder Mister automatically sprays teats with your preferred teat dip solution.  Therefore, fully coating and protecting from mastitis-causing bacteria between milkings.

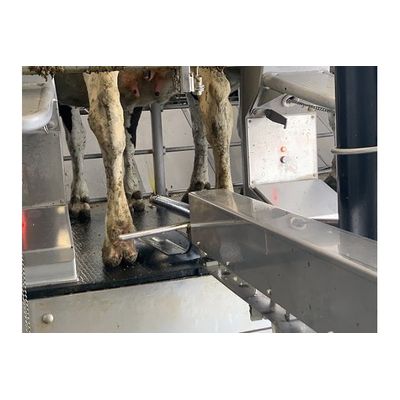

• Udder Mister works by using infrared sensors to detect when a cow is present in the rotary stall. Then, the Udder Mister arm extends and sprays the teats on the left side of the udder as it goes under the cow and as it pulls back out it sprays the teats on the right side of the udder. Once the arm returns to its starting position, a wash down system cleans the nozzle before starting the process again for the next cow.
• Udder Mister adjustments include customized spray nozzles based on parlor set-up to ensure full coverage of teats. The height of the spray arm is adjustable to meet the needs of each parlor. The Udder Mister arm is mounted on springs allowing the unit to flex 90 degrees in either direction in case it gets caught on the rotary to allow the obstruction to pass.
• Once installed, the teat sprayer system requires no interaction from parlor staff except for routine maintenance.

• Specifically placed sensors ensure every cow is sprayed properly, every time
• Compatible with most standard dip sprays
• Control and adjust cow position, dwell time and return speed, to accommodate varying turn speeds
• Built to perform under all temperature conditions

• Maximum Dip Usage: 17.5-25 ml per cow depending on dip viscosity
• Minimum time per stall: 7 seconds for Udder Mister 1.0; 4.5 seconds for Udder Mister 2.0
• Electricity: 120/240 VAC
• Air: 50 – 60 psi
• Dip Viscosity: Up to 40 CPS
