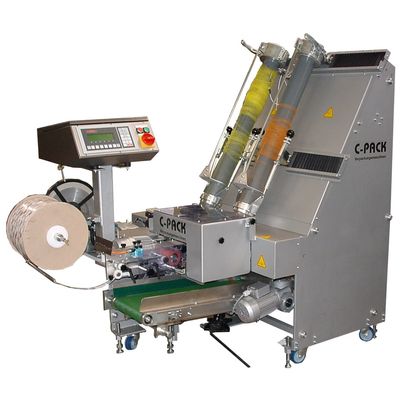

C-Pack - Model VAC 942 -Automatic Clipping Machine
FromC-Pack GmbH
“Original-C“ automatic clipping machine to close and separate machine-usable nets fully automatically
Supplementary equipment
- program storage
- label transporting units
- units for printing onto and transporting label tapes and/or punched labels
- thermo-barcode printers
- intermittent discharge conveyor
- pivotable 6 mm clipping head
- automatic net tube change for continuous operation
- net draw-off with net infeed slide length of net drawn off infinitely adjustable
- microprocessor control with twolined clear text display
- net charging cone, net tube stand to allow a quick net tube exchange
- Performance: max. 60 packages/min, depending on product
- Power supply: 230/400 Volt N/PE, 50 Hz, approx. 1.0 kW (other connections on request)
- Machine weight: approx. 650 kg
- Package weights: 0.1 – 1,0 kg (depending on size of product)
- Length of label tape and punched labels: 120 – 160 mm
- Clipping strip:
thickness: approx. 0.35 – 0.45 mm
width : 5.0 mm
clip length: approx. 20 mm - Outer net tube diameter: 100 mm (others on request)
- Infeed height: 1540 mm
