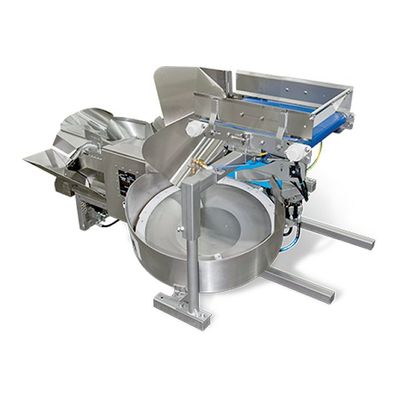

Magnuson - Model ACC -Automatic Corn Cutter

Superior self-clearing

• Product jams in the cutter head are automatically detected by the computer and instantaneously cleared for continued operation

Simplified sanitation

• All necessary parts are accessible for easy cleanup and are made of stainless steel or food-grade plastic

First-string flexibility

• Includes online compatibility without needing major structural changes to the present system

Exclusive Cutter Feed System®

• Unique belt feeder system ensures gentle handling and maintains center alignment of ears for a top-quality cut

Space-saving design

• Each unit is sturdy and compact for minimal floor space and low maintenance costs

Exceptional hydraulics

• Includes a hydraulic drive system with air-actuated cylinders for primary control

Designed for safe operation

• Electrical is engineered at a low 12-volt, computerized system for added safety

• Inlet height: Variable standard 66"
• Overall length: Approx. 70"
• Overall width: Approx. 58"
• Air requirement: 45 scfh @ 90 psi
• Water consumption: Approx. 7 gph @ 90 psi
• Hydraulic requirement: Approx. 10 gpm @ 90 psi
• Minimum spacing: 5.5` on center
• Orientation accuracy: 85-95%
• Average rate: 100-120 ears/min
• Instantaneous rate: 185 ears/min
• Hydraulic rate: (Food Grade) 215 SSU @ 100°F (Oil temp must be maintained between 110°-120°F)
