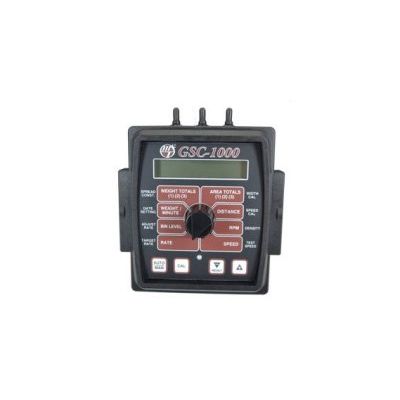

Micro-Trak - Model GSC-1000 - Automatic Fertilizer Application Rate Controller for Granular Spreader Systems
From Automatic Rate Controllers
The GSC-1000 from Micro-Trak is a low-cost high performance easy-to-use dry rate controller that not only controls product rate, but also has an optional RPM input. Once the spreader constant has been determined by a simple calibration procedure, product density or gate setting can be changed by simply entering calibration and changing the density or gate height; no need to re-calibrate the spreader constant.
-
Most popular related searches
Details:
Alternately the GSC-1000 can be easily and quickly configured to do non-ground speed based spinner RPM control.
GSC-1000 Operational Features:
- 3 independent Area and Volume counter pairs that can be used to record your daily, weekly & seasonal totals.
- No Flow and No Speed messages to quickly alert operator of fault.
- Displays Bin Level so operator always knows how much product is remaining (also has settable low bin alarm).
- Monitors spinner RPM for accurate spread pattern. Displays Weight per Minute of product being applied.
- Displays distance in feet for quick verification of Speed input accuracy.
- Displays Rate of product applied down to one hundredth of a pound for ultra low rate accuracy.
- Automatically stops apron if No Flow is detected and alerts operator to prevent over applying product.
- Can be configured to control either the apron rate or spinner RPM.
GSC-1000 Calibration Features:
- Spreader Constant, once this has been determined, it never needs changing unless drive gear ratio is changed.
- Gate Setting, when the gate height is changed simply adjust this setting to match, can be adjusted in one tenth of an inch increments.
- Density, when the density of the product changes simply adjust this setting, can be adjusted in one tenth of a pound per cubic foot.
- Product rate regulating valve can be used as shut off valve if the Auto Off feature is activated.
- Bin level set point can be adjusted to alert operator when bin level is low.
