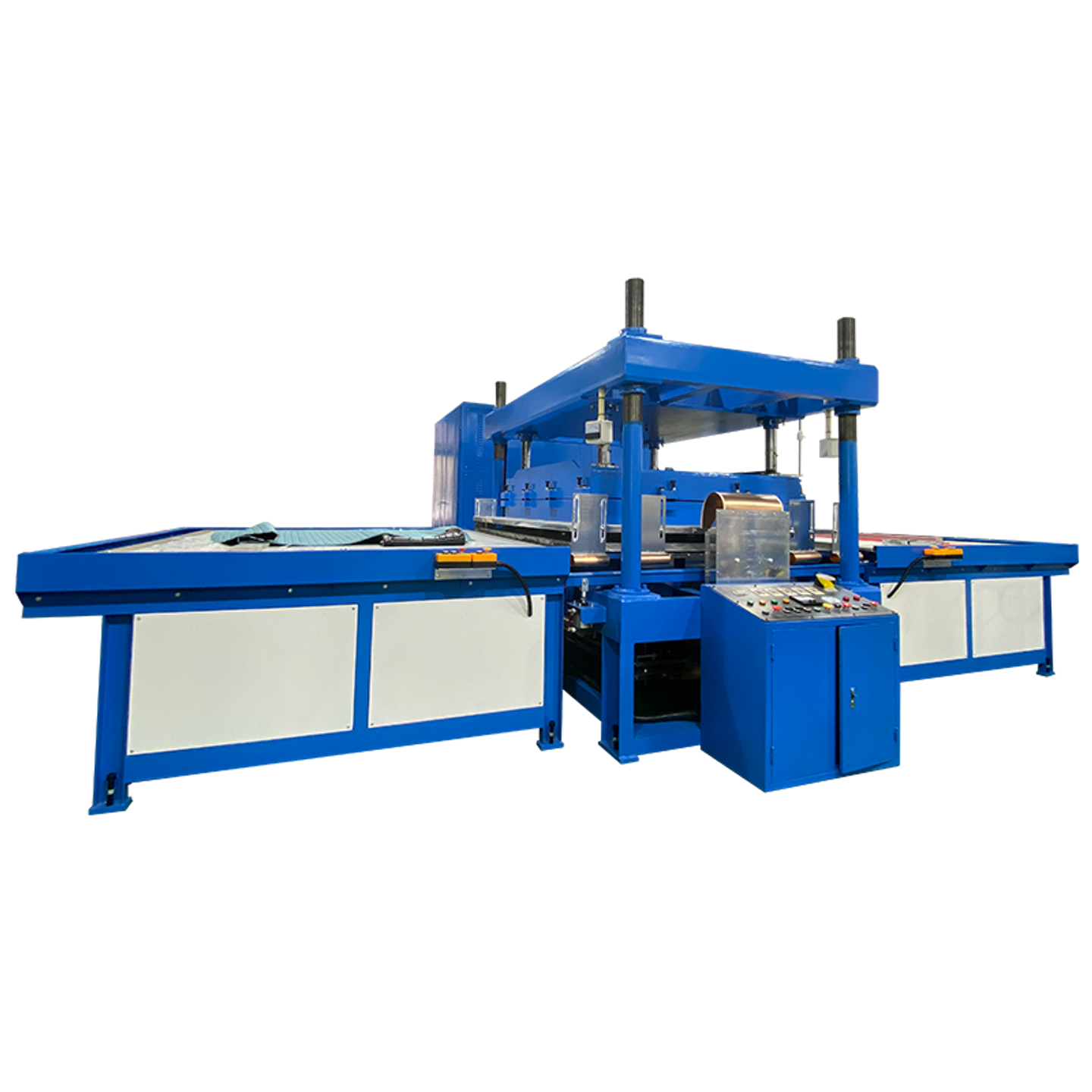

Guochiqiang - Model GCQ-W25KW - Automatic High Frequency Bag Making Machine
The machine has a set of rollers for foil with tension and unwinding speed control, the possibility of parallel welding of several elements, collection and winding of waste and stacking ready elements.
Most popular related searches
- HF Frequency 27.12MHZ ±0.6%
- Model GCQ-W25KW
- Output Power 25KW
- Power AC220/380/400/415/440V 50/60HZ(Customized)
- Input Power 32KVA
- Oscillation Tube 7T85RB
- Anti-spark Tube NL-5557
- Gap of Electrode 200mm
- Machine Weight 2500KG
- Size of upper electrode 1500mm
- Size of Lower electrode 1300mm
- Packaging Standard Export Wooden Case
- Adopt the vacuum tube, the output power is stable and reliable.
- High sensitive spark over current protection circuit, automatically cuts HF suppression.
- The HF stabilizer and HF shielding device, set the HF interference to a minimum.
- Set manually adjust the mould, the four type level adjustment, easy adjustable die.
- Can be automatically completed secondary welding process, improve work efficiency.
- The infinite constant temperature system, welding more quickly.
- Using spark protection system, increase vacuum tube life, protect the mould damage.
- Machine has one feeding system, with two Inflatable shafts.
