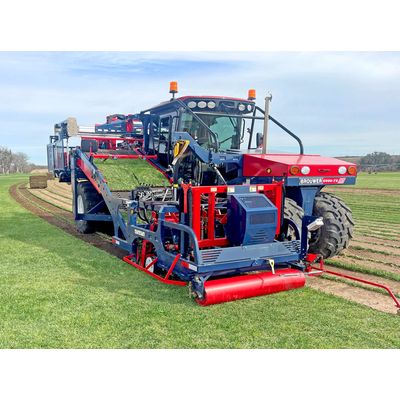

Kesmac Brouwer - Model 6000-TS -Automatic Slab Sod Harvester

SHARE

With a 48” cutting width and the ability to cut clean or up to 4” ribbons, this machine is designed to reach new capacities of cutting performance. The fuel efficient Brouwer 6000-TS Automatic Slab Harvester is designed around the same dependable platform as the Brouwer 4000-R Roll Harvester, balanced for maneuverability while maintaining it’s light footprint and tight turning radius. With a quiet, comfortable John Deere combine Cab, LED lighting, optional cameras, optional auto-steer camera and a high torque 3.6L CAT Engine for reliable power the Brouwer 6000-TS takes automatic slabbing to the next level.

Most popular related searches
automatic harvesting system
harvesting system
  • Brouwer Telematics allows for remote diagnostics, updates, adjustments and monitoring utilizing GSM/GPS communication
  • Compact, Maneuverable Automatic Stacking Slab Harvester, with a tight turning radius and easy back up capability
  • Advanced Cutter Head with 2 roller adjustable down pressure
  • Robotic Stacking System can gently transfer slabs of weak turf to pallets with our exclusive Gantry
  • OEM Deluxe Cab includes tinted windows, interior climate control and training seat
  • 2 x 23”, or 2 x 24” Cutting Widths
  • Automatic Pallet Injector: Up to 18 pallets standard or double sided
  • Electronic Auto-Steer with micro adjustment
  • All Wheel Drive with Traction Control
  • 134 HP AWD C3.6 FTAD – T4F/Stage V Diesel Caterpillar Engine
  • Scrap slab eject system (on the go)
  • Customizable Locking Slab placement
  • Adjustable stacking pressure
  • Pallet drops on the go or backed out of the way of the cut line
  • Fully automated Auto Drive control for maintaining harvest ground speed
  • Electronically adjustable cut-off length
  • LED lighting
  • Finger tip controls for simple field adjustments
  • Excellent visibility of cutter, conveyor and piling area
  • Operation and diagnostic screen
  • Back-up camera
  • Multiple stacking patterns
  • Automatic moving piling walls produces a tighter pallet
  • Excellent machine stability and flotation on soft ground
  • Chassis tie downs for easy transport

6000-TS SPECIFICATIONS

  • Conveyor: Rubber Mat
  • Cutting Head: Full Floating Cutter Head
  • Width of Cut: 2 x 23” (584 mm),or 2 x 24” (610 mm)
  • Length of Cut: Adjustable
  • Thickness of Cut: Hydraulically Adjustable
  • Pallet Size: 48” (1.2 m) x 48” (1.2 m). Other options available
  • Cutter Drive: Variable Hydraulic
  • Conveyor Drive: Variable Hydraulic
  • Cutting Blades: Standard with Fingers / V-Blade
  • Construction: High Strength Steel Weldment
  • Total Weight: 23800 lbs. (10795 kg.) (dry weight)
  • Overall Length: 306” (7772 mm) (Less Ski)
  • Overall Width: 143” (3632 mm)
  • Transport Width: 143” (3632 mm)
  • Overall Height: 120” (3048 mm)

6000-TS ENGINE, TIRE & CAB SPECIFICATIONS

  • Caterpillar: AWD C3.6 FTAD – T4F/Stage V
  • Displacement: 3.6L (220 cu.in.)
  • Aspiration: Turbocharged After-cooled
  • Horsepower: 134 HP @ 2200rpm
  • Torque: 241lb-ft. @ 2200rpm – 375 lb-ft. @ 1400 rpm
  • Front Tires: 550/45 R22.5 Flotation (Optional 380/75 R20)
  • Rear Tires: LH Tire 650/55 R22.5 Flotation Radial, RH Tire 750/45 R22.5 Flotation Radial
  • Cab: Deluxe Cab
  • Seat: Adjustable Suspension Swivel Seat
  • Brouwer Telematics allows for remote diagnostics, updates, adjustments and monitoring utilizing GSM/GPS communication
  • Optional Electronic Auto-Steer Camera with micro adjustment
  • Optional Front Tires
  • Spare Parts Kit
