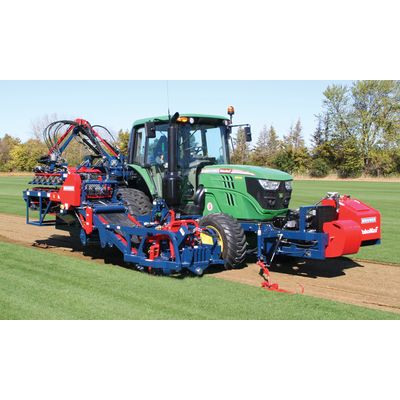

Kesmac Brouwer RoboMax - Model JD -Automatic Sod Harvester
FromKesmac Inc.
The RoboMax JD Sod Harvester from Brouwer proves our commitment to your business performance. This single-operator Sod Harvester is simple and state of the art. It is capable of producing pallet after pallet of 16”, 23“ or 24” small rolls even in tender conditions. A simple robotic stacking system gently transfers 4 or 5 rolls of turf at a time to rear mounted pallets that are easily handled with a forklift. An optional double sided pallet injector is also available. Easy to operate and maintain, the RoboMax JD Sod Harvester from Brouwer is a cut above.
Most popular related searches
harvesting system
automatic harvesting system
rolled turf
tractor
side discharge tender
tractor seat
tractor training
harvesting operation
- Compact, Maneuverable Automatic Stacking Roll Harvester
- 16” / 23” / 24” Cutting Widths
- Robotic Stacking System gently transfers 4 or 5 Rolls of turf at a time to rear-mounted pallets
- Automatic Pallet Injector / Optional Double Sided swings in for transport
- Mounted on a John Deere 6130M Tractor
- 24 x 24 Auto Quad Plus Transmission
- Standard 4WD
- Electronic Auto-Steer
- 48” x 48” (1.2 m x 1.2 m) pallet
- 1.0 m x 1.2 m & 0.8 m x 1.2 m pallet
- Climate controlled deluxe cab
- Operator friendly controls
- Simple field adjustments
- Scrap roll eject system (on the go)
- Multiple stacking patterns
- Squeeze function on upper layers
- Excellent visibility
- Adjustable hydraulic cutter head down pressure
- Full operation lighting
- Proven automatic flap control
- Variable hydraulic cut-off
- Operation and diagnostic screen
- Rear Gate
ROBOMAX JD SPECIFICATIONS
- Conveyor: Rubber / Mintex
- Cutting Head: Full Floating Cutter Head
- Width of Cut: 16” (406 mm) / 23” (584 mm) / 24” (610 mm)
- Length of Cut: up to 100” (2540 mm)
- Thickness of Cut: Hydraulically Adjustable
- Pallet Size: 48” (1.2 m) x 48” (1.2 m), 1.0 m x 1.2 m, 0.8 m x 1.2 m
- Cutter Drive: Variable Hydraulic
- Conveyor Drive: Variable Hydraulic
- Cutting Blades: Standard with Fingers / V-Blade
- Construction: High Strength Steel Weldment
- Total Weight: 22420 lbs. (10170 kg.) (D/S Pallet Injector. 24in.)
- Overall Length: 294” (7468 mm)
- Overall Width: 170” (4318 mm)
- Transport Width: 140” (3556 mm)
- Overall Height: 112” (2845 mm)
- Pallet Configuration: Pyramid or Flat Top, Upper Level Squeeze Function
- Flap Control: Automatic
TRACTOR SPECIFICATIONS
- John Deere: 6130M
- Power: 130 HP John Deere Engine
- Transmission: 24 Speed PowerQuad
- Steering: Hydrostatic Power
- Traction: Standard 4WD
- Front Tires: 400/55-22.5 Flotation
- Rear Tires: 650/55R 26.5 Flotation Radial
- Engine: 4.5L PowerTechTM PSS, Dual Turbochargers
- Cab: 6M Cab
- Seat: Standard Air Suspension w/Training Seat
TRACTOR SPECIFICATIONS
- John Deere: 6110M
- Power: 110 HP John Deere Engine
- Transmission: 24 Speed AutoQuad PLUS
- Steering: Hydrostatic Power
- Traction: Standard 4WD
- Front Tires: 400/55-22.5 Flotation
- Rear Tires: 650/55R 26.5 Flotation Radial
- Engine: 4.5L PowerTech PSS, Dual Series Turbocharger
- Cab: Deluxe Cab
- Seat: Deluxe Swivel Air Suspension w/Training Seat
- Optional front ground roller
- Optional brush kit
- Optional Double Sided swings in for transport
