RIFOmat - Model 14201-N - Automatic Water Extractor Model Pressoquick

SHARE

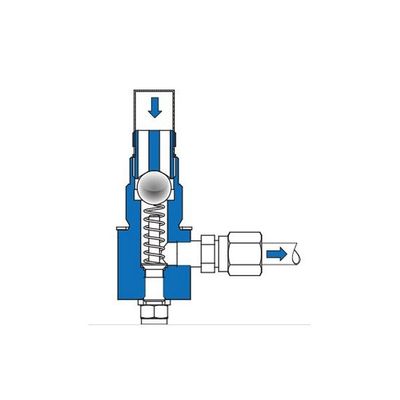

Functional description: During system start-up and rise of operating pressure and thus differential pressre to more than 0,2 - 0,3 bar the valve closes. After drop of operating pressure and lowering of the closing pressure tox 0,2 - 0,3 bar the valve opens. Start-up fluid and residual fluid are being drained. The pressure spring keeps the valve in the open position when the system is depressurized.

Most popular related searches
automatic waterer

Housing Material:

  • 1.4104
  • 1.4571

Nominal diameters: DN15, DN6

Connections:

  • Inlet: G1/2" (BSP) ace. DIN ISO 228-1
  • Outlet: 1/8" NPT ace.ANSI B 1.20.1 (Fitting for tube 8x1)

Nominal pressure stage:PN40

Operational capabilities: Automatic drainage of water and condensate during start-up and system shutdown. Due to residual drainage no freezing of condensate discharge units, compressed air systems, pipelines, such as fire-extinguisher lines which due to safety reasons have to be free of water seals, etc. Special characteristics: All mechanical parts made of stainless steel. The valve ball is hardened and the valve seat is quenched. Depending on applications, the automatic water extractor can be offered in special materials.
Installation:
Horizontal or vertical for drainage at lowest system point
Optional:
Adapter for assembly on traps
