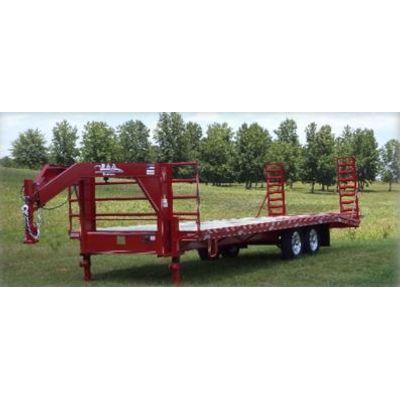

B&A Trailers - 7 Ton Gooseneck Deck-Over Equipment Trailers

• Beavertail: 5` self-cleaning angle cleats (flip-up)
• Ramps: 5` spring assist, angle cleats (stand-up)
• Sides: 6" x %" flat w/stake pockets (24" on center) and rub rail
• Gooseneck: 8" l-Beam
• Bulkhead: 1 %n pipe front rack
• Jack: (2) Dual Ram 12K drop leg
• Coupler: 2 5/16" adjustable pipe
• Axles: (2) 7,000 lb. spring suspension, EZ lube with electric brake
• Wheels: 16" single, 8 lug
• Tires: (4) - 235 80 R 16 E, 10 ply radials
• Spare Tire: mounted front top ofGN
• Boarding Step: Front driver side
• Storage: tool tray w/ steel front and mesh bottom & locking lid
• Fenders: 1/8" checker plate over tires
• Floor: 2" x 8" Pressure treated pine
• Breakaway kit: 12 Volt battery, with charge wire and LED test light
• Safety chains: (2) 3/8" w/hook and closures
• Wiring: run in conduit tubing with junction boxes and neatly spliced
• Lights: LED
• Paint: cleaned, primed and painted 100% Black (optional color)
• Warranty: 1 year with MSO provided

Standard Models:
(*) full flatbed (#) center torsion twist pipe

Ramp Models
8.525GN7T (20` flatbed + 5` beavertail)
8.528GN7T (23` flatbed + 5` beavertail)
8.530GN7T (25` flatbed + 5` beavertail) (#)
8.532GN7T (27` flatbed + 5` beavertail) (#)

Flatbed Models
8.525GN7T (25` flatbed) (*)
8.528GN7T (28` flatbed) (*)
8.530GN7T (30` flatbed) (# *)
8.532GN7T (32` flatbed) (# *)

Options:

• wood beavertail/ramps
• flip-up beavertail
• stand up ramps
• dual jacks
• spare tire & mount
• pipe bulkhead
• load lights
• extra boarding step(s)
• side mount tool box
• optional colors
• torsion axles
• oak flooring
• electric over hydraulic brakes
• top deck over gooseneck
• underbody slider track with blocks and straps
• winch mount
• 9,500 lb. winch and battery
• 8 ft. ramps and storage chute
• locking lid on tool tray
• custom bed lengths

8K Upgrades Available:

• 8K axles
• 10" I-Beam Neck
• 235 85 R 16 G (14 ply radials)
• 215 75 R 17.5 H (16 ply radials)
