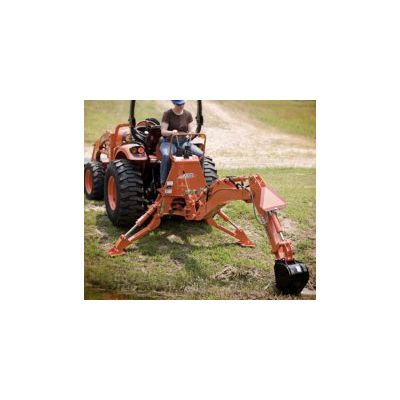

- Kioti - Model KB2475L - Backhoes
Most popular related searches
- Digging Depth (two foot flat bottom) 89.7 in. (2,280 mm)
- Reach from center line to swing pivot 125.1 in. (3,180 mm)
- Loading Height (bucket at 60˚) 72.4 in. (1,840 mm)
- Maximum Leveling Angle 10˚
- Swing Arc 180˚
- Transport Height (Maximum) 83.5 in. (2,120 mm)
- Transport Overhang 49 in. (1,245 mm)
- Bucket Rotation 180˚
- Stabilizer Spread (down position) 68.7 in. (1,745 mm)
- Stabilizer Spread (up position) 46.4 in. (1,180 mm)
- Angle of Departure 21˚
- Shipping Weight - Backhoe 880 lbs. (399 kg)
- Bucket Digging Force 2,817 lbs. (1,278 kg)
- Dipperstick Digging Force 2,105 lbs. (955 kg)
- Operating Pressure 2,466 psi (170 bar)
- Subframe mounted.
- Factory assembled.
- Responsive two-lever hydraulic control with exceptional feathering characteristics.
- Anti-drop load-checks.
- Standard buckets: 9", 12", 16", 18", 24" and 36".
- All buckets have replaceable teeth.
- Extra heavy-duty buckets.
- Entire backhoe except for subframe is quick-detached from tractor.
