  5. Kioti - Model KB2465 - Backhoes

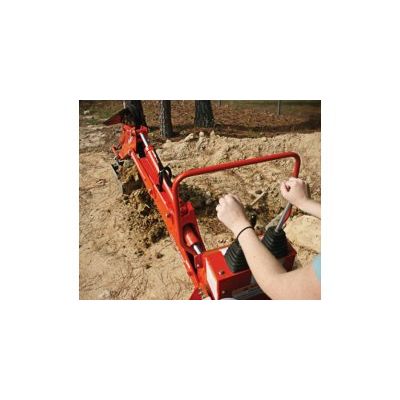

Kioti - Model KB2465 -Backhoes

SHARE

Specifications may vary depending on tractor model and are subject to change without notification. Tractors must be equipped with ROPS and seat belt that will provide greater safety.

Most popular related searches
tractor backhoe
tractor
digging bucket
backhoe attachment
tractor equipment
center pivot
  • Subframe mounted.
  • Factory assembled.
  • Responsive two-lever hydraulic control with exceptional feathering characteristics.
  • Anti-drop load-checks.
  • Standard buckets: 9", 12", 16", 18", 24" and 36" wide ditch and grave buckets.
  • All buckets have replaceable teeth.
  • Extra heavy-duty buckets.
  • Entire backhoe except for subframe is quick-detached from tractor.
  • Digging Depth 76.3" (1,940 mm)
  • Reach (From center of Swing Pivot) 113.1" (2,875 mm)
  • Loading Height (Bucket at 60 degrees) 63.6" (1,615 mm)
  • Swing Arc 180°
  • Transport Height (Maximum) 77.2" (1,960 mm)
  • Transport Overhang 43.5" (1,105 mm)
  • Bucket Rotation 180°
  • Stabilizer Spread (Down Position) 68.7" (1,745 mm)
  • Stabilizer Spread (Up Position) 46.4" (1,105 mm)
  • Shipping Weight (Less Bucket) 1,012 lbs. (459 kg)
  • Bucket Digging Force 2,817.5 lbs. (1,278 kg)
  • Dipperstick Digging Force 1,748 lbs. (793 kg)
  • Operating Pressure 2,466 psi (170 bar)
