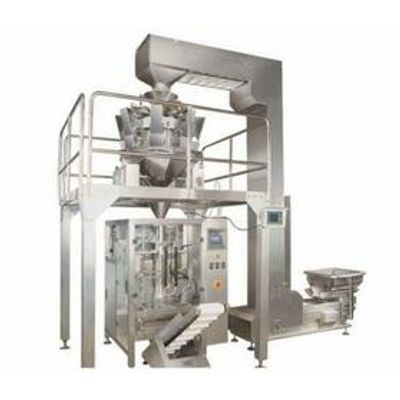

Zengran - Model VFFS5000D - Bagging Machine with Multihead Weigher
It Is Suitable For Weighing And Packing Leisure Foods Such As Candy, Seeds. Jelly, Pet Foods, Puffy Foods, Pistachio, Peanuts, Nuts, Raisins Etc And Big Shell Nuts, Hardwares, Dried Fruit, Frozen Foods. Snar.k Foods. Meat halls and so on.
Most popular related searches
- Max Speed: 30-80bags/min
- Bag Size: (50-280){L)`(70-200)(W)mm
- The Machine Integrates The Functions Of Bag-Making, Filling, Sealing, Printing, Punching And Counting.
- Adopts Servo Motor For Film Pulling With Automatic Offset Correction. Two Types Of Driving, i.e. Cylinder And Servo Can Be Adopted For Transverse Sealing (For Convenient Selection By The Customer Under Different Operating Condition); There Are Two Types Of Longitudinal Sealing Mechanism, I.E. Center Sealing Type And Platen Press Type (The User Can Choose According To Specific Material And The Film Roll).
- The Machine Has Good Sealing Performance And Can Meet Customer`s Hygienic Requirements.
- All The Electrical Components And Control Components Adopt Local And Foreign Weil-Known Brands With Reliable Performance; Man-Machine Dialogue Platform, Both The Operator And Debugging Personnel Can Set Parameters Through The Touch Screen.
Technical Date Of VFS5000D Bagging Machine
- Bag type: Pillow bag, gusset bag, punching bag
- Bag size range: (50-280)(L)*(70-200)(W)mm
- Packing speed: 30-80bags/min
- In/ex reel dia of film roll: 75mm 400mm
- Compressed air: 0.6MPa 350L/min
- Power supply: 380V 50-60HZ 3KW
- Gross weight: 0.5T
- Machine dimension: 1730{L)*1072(W)*1550mm(H)
- Machine material: SS304+LYll/SS304+Carbon steel
Technical Data Of Standard Multihead Weigher
- Model: 14 head standard multihead weigher
- Weighing range: 10-1500g
- Accuracy : ±0.5%
- Max. speed: 120P/M
- Hopper volume: 1.6/2.5L
- Control panel: 7"Touch Screen
- Options: Dimple Plate/Timing Hopper/Printer/Reject Device
- Driving system: Step Motor
- Power supply: 220V/1500W/ 50/60Hz /10A
- Machine dimension(mm): 1700(L)*1110(W)*1130(H)mm
- Gross weight: 490kg
It Is Suitable For Weighing And Packing Leisure Foods Such As Candy, Seeds, Jelly, Pet Foods, Puffy Foods, Pistachio, Peanuts, Nuts, Raisins And Big Shell Nuts, Hardwares, Dried Fruits, Frozen Foods, Snack Foods, Meatballs And So On
