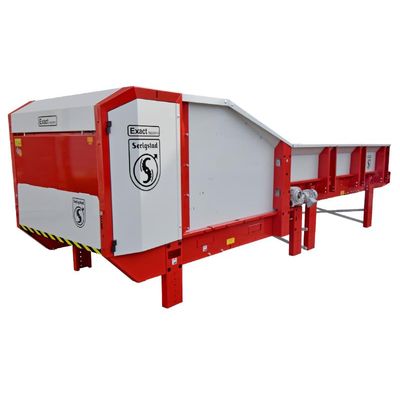

Serigstad - Model ExactFeeder -II -Bale Chopper and Reservoir
Automated round bale chopper with integrated feed table. The ExactFeeder II bale chopper and reservoir is the second generation of our automated bale chopper, developed on experiences and principles from the well-known FlexiFeeder. The improvements for the ExactFeeder II include sophisticated PLC, internet connection, load cells and a new knife drum capable of holding 60 knives.
ExactFeeder II bale chopper and reservoir is developed to be a part of automated feeding systems, delivering steady flow, high capacity and well cutting of forage.
The machine may be used as a stand-alone chopper and reservoir, or in a semi or fully automated system. Used with a TMR-mixer or feeding wagon, the ExactFeeder II will contribute to a more flexible and effective utilization of the feeding system.
Reinforced drums
ExactFeeder II is delivered with reinforced knife and spiked drum, to withstand the wear an automated system is exposed to.
It is equipped with 20 knives as standard to ensure good cutting and high capacity. The knife drum is capable of holding up to 60 knives and is rotating at 380 rpm.
By changing the type or number of knives, the ExactFeeder II can be customized to suit your forage mass.
Forsterket kutteagregat
Automated
ExactFeeder II can be controlled manually, using an app, or by an external start signal from an other machine like the Lely Vector.
Load cells
Load cells weighs the forage in the machine. This makes it possible to feed based on weight.
Feed table
If the machine is empty, a new bale will be loaded from the feed table and the cutting will resume. The feed table is delivered in lengths of 2,6 or 3,8 meters, but is extendable with up to seven modules of 1,28 meters each.
The feed table is available with telescopic legs to match the ExactFeeder, i intervals from 0-100 cm.
Photo cell
Photo-electric sensors in the sides detect when the chamber is nearly empty, and initiates loading from feed table.
ExactFeeder II
ExactFeeder II is available with integrated magazine(2,8m + 3,5m), and can be extended with modules of 2m each. Total length can be 11,5m.
- Length (with short feed table): 4 991 mm
- Width: 1 770 mm
- Height: 1 791 mm
- Weight: ca. 1 300 kg
- Max bale diameter: 1,60 m (1 200 kg)
- Max bale width: 1,20 m
- Power (230 V): 35 A
- Power (400 V): 25 A
- Effect, knife drum: 7,50 kW
- Effect, spike drum: 1,50 kW
- Effect, conveyor: 0,75 kW
- Effect, feed table: 2 x 0,55 kW
- Cutting time (grass): 5 - 10 min per bale*
- Cutting time (straw): 10 - 25 min per bale*
* Cutting time may vary depending on many factors like bale size, type of grass, knives and program
