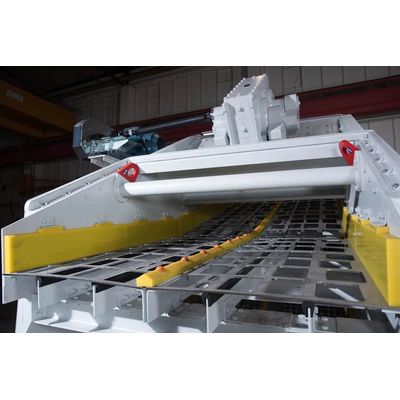

Banana Screen

SCREENING INCLINATION
Inclination of deck - individually optimized
The basic idea of the IFE banana screen is based on the varying inclination of the screen mats. This results in adequate speeds of the material and a low thickness of feed material at the inlet. Fines are screened immediately in the first section of the screen.

HEAVY DUTY SCREEN FRAME
Weight that moves
34,100 kg of oscillating weight moves in the biggest IFE banana screen built to date. These screens are designed for years of service in hte harshest of conditions. Starting in the design, only the most robust and torsion resistant frames are used, forming the basic construction of the screen. The sidewalls are made of a single sheet and the frame (side walls and cross beams) is bolted and glued, avoiding weaknesses or tensions in the metal that may be caused by welding.

EXCITER DRIVE
The robust alternative
IFE exciter drives from our own production are manufactured using first-class components and  feature maximized lifetime of the bearings. Decades of experience in designing these screens results in optimized and adequate excitation and maximized efficiency. The screen can be accelerated up to 6g and still boast bearing lifetimes of 100.000 hours or more. Highest reliability, even in harsh conditions, is the proven result.

design type: single or double deck screen
nominal length: up to 11000 mm
nominal width: up to 5000 mm (single deck screen)
nominal width: up to 4000 mm (double deck screen)
screen deck: multiple inclinations possible
driven : by IFE exciter drive (seven sizes available)

• highest specific feedrate - two to three times higher than with conventional linear motion screens
• best suitable for material with high content of fines
• robust, torsion-resistant construction
• single or double deck design
• bolted and glued design
