Falcon - Battery Cage Feed Loading Systems
FALCON chain transport systems, thanks to its flexibility, can carry out very tortuous vertical and horizontal circuits, difficult to achieve with traditional screw conveyors. You can get a system with a maximum capacity of 12 tons / hour, with a very low power, ranging from 1.5 to 4 HP per circuit. Con lo stesso trasportatore, si possono collegare uno o più silo di prelievo e distribuire il mangime su uno o due piani. With only one circuit you can connect more than one silo, and distribute the feed in one or two floors.

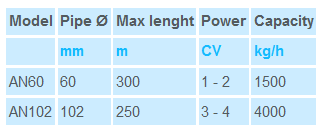

Falcon chain conveyors, thanks to their great flexibility, can navigate often winding paths that are difficult to achieve with traditional screw conveyor systems. In the most complete configuration, it is possible to reach systems with a maximum capacity of 12 tons/hour, with very low motor power ranging from 1.5 to 4 HP per circuit. With the same conveyor, it is possible to connect one or more pickup silos and distribute the feed across one or two levels.
Flexibility
The ability to feed multi-level barns using a single chain circuit.
High Capacity:
Loading hoppers up to three ways, ideal for creating multiple high-capacity systems.

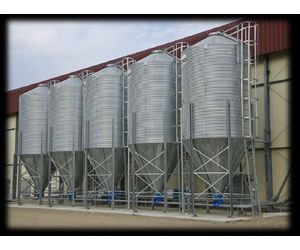

Intake from Silos
Manual or automatic selection of the intake silo, using special manual or electric valves.
Countless Possibilities
Various models to choose from, with infinite configurations and extremely low energy consumption.

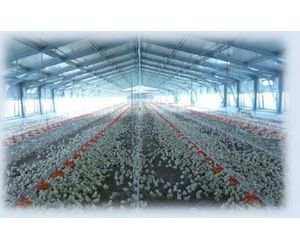

Automatic feeding systems that can transport and distribute the correct dose of feed to poultry. Our products dedicated to poultry farming vary: from feeding for broilers, laying hens, breeders, etc.

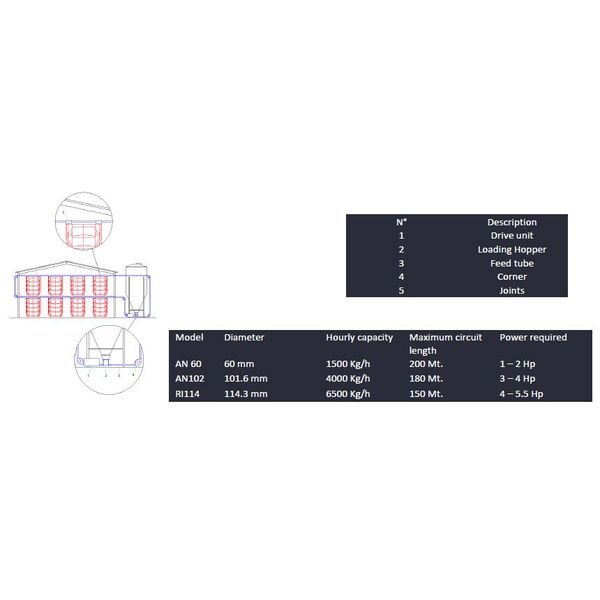

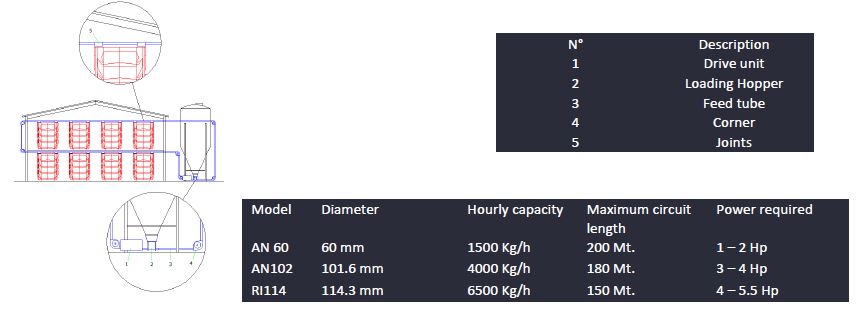

- N° Description
- 1 Drive unit
- 2 Hopper
- 3 Feeding pipe
- 4 Corner
- 5 Drop tube
