BCS - Model 620 Max -Motor Mowers
FromBCS Group

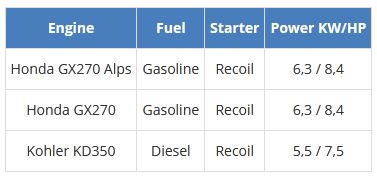

The BCS 620 Max mowers are equipped with a petrol engine8,4 hp Honda GX270available also inAlpsversion (recommended for steeply sloping uses) and a7,5 hp Kohler KD350 diesel engine.
Most popular related searches
The gearbox has four forward speeds, three reverse speeds and a quick reverser.
The bars available, from 100 to 180 cm wide, are in the “Laser”, “Laser Elasto”, with middle cut fingers and Duplex versions.
The transmissions, which support and drive the cutter bars, are available in a dry type requiring the usual maintenance and maintenance-free "Torx" models in oil bath.

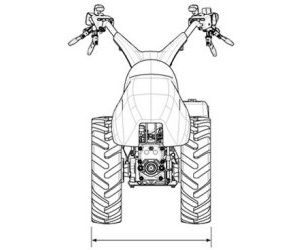

Width min / max (without attachment):
- with wheels 4.00-8: 435 mm
- with wheels 4.00-8 + Super Bite: 705 mm
- with wheels 16x6.50-8: 565 mm
- No. of speeds FWD/REV: 4 + 3
- Quick reverser:yes
- Clutch:self-ventilating conic clutch
- Differential with lock:no
- PTO:independent at 990 rpm with engagement in oil bath
- Parking brake
- Driving positionwith height and side adjustable handlebar mounted on shock absorbers to reduce vibrations
- Weightwith GX270 engine, 4.00-8 wheels, oil bath transmission and cm. 115 cutter bar: kg. 115

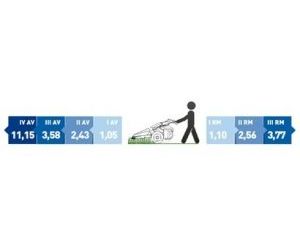

- Graph of the speedsin km/h with 4.00-8 tyres
