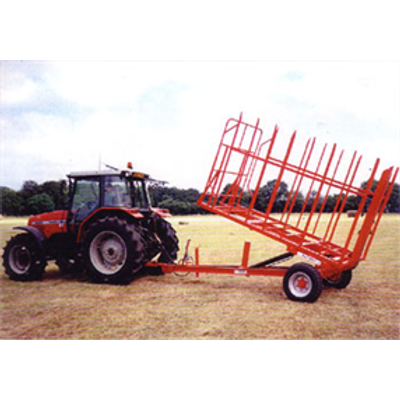

Big Bale Transporter

Brown's Bale Transporter is designed to carry 56-72 bales in layers of eight stacked nine high. Its wide wheelbase enables it to be operated by tractors of a smaller horsepower. Steel box section is used throughout with a high strenght/low weight ratio. Supplied complete with two double-acting rams and hydraulic hoses. Optional valves available. Now supplied with brakes as standard. Trailer lights - as standard.

Will also handle 8 x 800mm square big bales or 10 x New Holland D1000 big bales.
(1) Total weight of bales MUST NOT exceed 2500kg [5512lbs).
(2) Bale length MUST NOT exceed 40' (1016mm) (small conventional bales).
Bale Transporter - Trailer Lights (51871) included as Standard (for 72 or 8 X 80OMM square big bales or 1 10 x NH D1000)
Kit for bale transporter (including spoof valves & hoses) is alos available (Please advise if required for John Deere tractor)
Dimensions (approx.)
Length: 4674mm (15' 4')
Width:  2210mm (7' 3')
Weight: 1080kg   (2381lbs)
Wheelbase: 1950mm  (6' 4')
