Oxbo - Model 8000 -Blueberry Harvester
FromOxbo

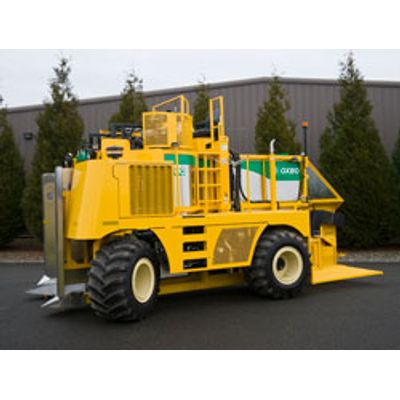

The Oxbo 8000 blueberry harvester brings together the Korvan brand`s 25 year of experience in the berry market with Oxbo`s commitment to continually improving products to a harvester that delivers a superior end product. The single drop delivery system on the Oxbo 8000 allows a quick transport of fruit from the plant into a tote or lug. The single drop and effective cleaning system deliver high quality fruit in an affordable, stable platform with your choice of picking system. Oxbo backs every Model 8000 with local parts and service, both through dealers and through Oxbo facilities.
Most popular related searches
blueberry harvesting
harvesting system
harvest blueberry
blueberry
harvesting conveyor
fruit cleaning system
fruit quality
fruit cleaning
fruit transport
- Single drop harvester- A single belt efficiently moves fruit to the cleaning system and the 8040 boasts the lowest fruit drop (in inches) of any harvester.
- Side Guard Lower Belts - These optional guards reduce fruit rubbing and retain the highest quality blueberries.
- Ultra Low Loss catchers - The 8040 gets the catchers lower on the plant and field tests prove this system retains more fruit than the competition.
- Simple, easy to operate- The 8040 features easy to use controls and a reliable harvesting platform.
- Picking system choices- Your choice in picking heads, including the industry-leading Orbirotor, allows you to customize the 8040 to your field conditions.
- Nose cones and cane lifters - The low profile nose cones and cane lifter design gently transitions the plant into the picking tunnel to maximize fruit retention.
Dimensions
- Length 19ft 6in (5.94m)
- Shipping length 19ft 6in (5.94m)
- Shipping width 10ft 11in (3.33m)
- Width 10ft 6in (3.20m) 42 inch tire
- Tunnel width 4ft 7in (1.40m)
- Minimum height 10ft 10in (3.30m)
- Tunnel height minimum 7ft 3in (2.21m)
- Effective catching length 10ft 2in (3.1m)
- Inside catchers 2ft 2in (0.66m)
- Lift 2ft (0.61m)
Tires
- Tire size 38 x 20-16.1
- Optional tires 42 x 25-20 or 600/40-22.5
- Cleaning System Fluid bed
- Engine Kohler 56hp turbo diesel, tier 4
Tank Capacities
- Fuel 48 gallons (182L)
- Hydraulic tank volume 18 gallons (68L)
