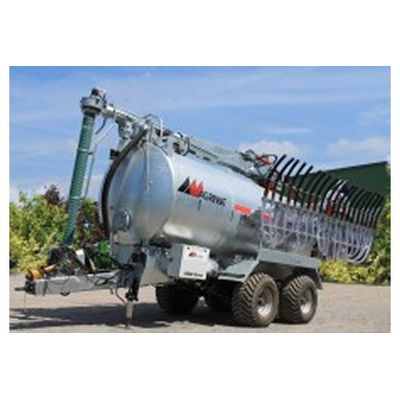

Agrimat Challenger - Bogie/Tridem Liquid Manure Tank
Assembly (frame /tank) one-piece with low compact structure (tank on built-in load-bearing frame with original gradient of 4%) Rear door standard, 800 dia, with inner double hinge, 6 hooks, provision for agricultural and industrial valve. 2 lateral valve outlets, 150 dia (right and left ). Mud guard acting as pipe supports. 2 or 3 anti-oscillatory panels, anti-implosion built-in (see table). Drawbar spring-mounted, fixed ring, 2 fixing pins, 2 position adjustments, multi-compressor support at 2 sites, hydraulic hose support s, cardan shaft , parking brake. Mechanical brake + hydraulic. Hydraulic jack, CHB 120 to CHB 240.
This assembly tank with built-in load-bearing frame, drawbar and vacuum shut-off is fully hot-dip galvanised after manufacture. PRE-EQUIPMENT FOR
- Pumping arm central left/right, 150 dia or 200 dia
- Standardised power lifts N2/N3 (common to ramps and burying coulters)
- Automatic air blender, 100 dia
- Tank meter
Standard Equipment
- Spring-mounted drawbar
- Industrial valve, 150 dia, double-action hydraulic spool
- Compressor
- Cardan shaft
- Compact dual-safety system (Challenger vacuum shut-off) with flow controller, pressure relief valve and air blender pre-equipment
- Needle level indicator
- Bogie and tyres: see characteristics table
- Mechanical support leg (hydraulic on CHB 120 to CHB 240)
- Manometer, 100 dia
- Front hose supports
- Exact type ground spray nozzle
- 3 m flexible hose, 150 dia, with connections, 3 m galvanised bent rigid pipe, 150 dia
- Mechanical and hydraulic brake
- Bumper with standardised lighting built-in
- Galvanised mud guard
- Rear flashing light
- Oil can with support
