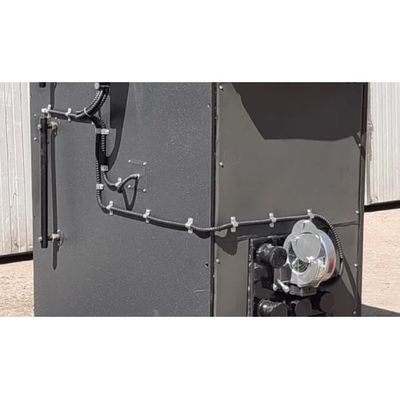

Boilers on Wood, Sawdust and Straw Bales
Boilers with gasification ECOS-RLG 30-800 KW with solid fuel. REDUCED ENERGY CONSUMPTION. VERY HIGH YIELD. COMPLEX AUTOMATION. REDUCED NOX EMISSION. HIGH RELIABILITY. GREAT AUTONOMY.
Boilers with solid fuel (sawdust, wood and straw bales) type ECOS RLG 30...1000 KW are intended for the production of the thermal agent (hot water) at a maximum temperature of 850C and domestic hot water at a maximum of 650C (if connected to a boiler) .
They can be installed in heating installations that serve a wide range of buildings such as houses, cottages, hotels, boarding houses, motels, farms, schools, hospitals, administrative buildings, commercial and production spaces,
timber dryers, etc.
- Forced gasification combustion gives it a 25% higher efficiency than normal combustion
- Maximum working pressure: 3 bar
- Maximum working temperature: 80 degrees Celsius
- Minimum autonomy with dry wood: 6 hours
- Control of pumps and temperatures using microprocessor automation. It controls the power of the boiler according to the needs of the consumer.
- The boiler is built with variable water speed depending on the heat discharge areas, the speed being higher in areas where the temperatures are higher
- Automated cleaning system for the convection zone
Installation, assembly and repair of the boiler will be done by qualified personnel in compliance with the instructions in the technical book. In the case of improper operation of the boiler, it is recommended to stop it immediately for troubleshooting.
The construction company provides service (by contract or on request) and recommends the annual check of the operation of the boiler, by specialized personnel, in order to guarantee the effectiveness of the boiler and its correct operation.
In case of failure of some components of the boiler, only original parts will be used for replacement.
For the use of spare parts other than those recommended by the designer, his written acceptance is required.
This boiler will only be used for the purpose for which it was built. Any other use will be considered improper and therefore dangerous. The construction company has no contractual or extra-contractual responsibility for damages caused by errors of use and non-compliance with the instructions provided in the TECHNICAL MANUAL.
