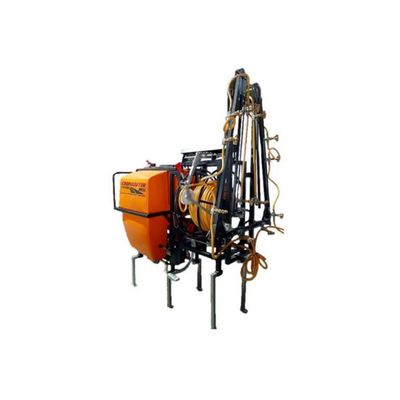

MITRA - Model CROPMASTER Reel 400 -Boom Sprayer
Mitra Cropmaster Reel is a Tractor Mounted Boom Sprayer which is attached to a tractor 3 point linkage. This sprayer is easy for mounting or dismounting from the tractor due to 3 point link attachment. The Cropmaster Reel has a 400lit main tank, a 40lit rinsing tank, and a 10lit hand wash tank for clean water, which provides uniform coverage and gives the best protection to your crops. Mitra’s Boom Sprayer works on tractors of 45 HP and above, which is useful for spraying on all ground crops like Soybean, Tur, Chilli, Cotton, and more, and it is also useful for orchard crops. The Tractor Mounted Boom Sprayer comes with the manual height adjustment for the boom up to 6 feet, which is useful in all kinds of crops like cotton with 4 to 5 feet height and also crops like Soybean, Gram, and more. It includes a 2-way adjustable brass nozzle, which gives adjustable spacing as per crop row spacing with the ability of the nozzle to switch on and shut off.
Due to the Belt Driven Hose Winding feature, It becomes easy for farmers to wind hose on the reel so they can engage a lever that is available with a hose length of 650 feet. The pressure relief valve provided with the Tractor Mounted Boom Sprayer reduces the pump’s excessive pressure, which prevents the pump from any damage. The Tractor Power Sprayer comes with a 5-mode controller and 2-way nozzles, which provides accurate delivery of the chemicals. In this Boom Sprayer, a back folding option is provided for easy operation. A Diaphragm Pump with 55 LPM provides continuous water flow without pulsation, and it is designed for applications of spraying pesticides and chemicals. The diaphragm pump has less maintenance due to the minimum moving parts. The power source is the Tractor PTO shaft, which transmits the tractor’s power to the machine by a straight angle of the PTO shaft. The tractor mounted boom sprayer prices are very much affordable in comparison with other sprayers in the market.
- Parameter: CROPMASTER Reel 400
- Tank: 400 Litre
- Pump: 55 LPM Diaphragm
- Handgun: 1 Handgun
- Hose length: 650 feet
- Boom Span Width: 20 feet
- No of Nozzle: 12 Nozzle
- Tractor HP: 45 HP & Above
- Proven Chemical and labor saving: Belt Driven Hose Winding - Easy to wind hose on the reel by simply engaging lever, available hose length 650 feet
- Reel hose can be used for all types of ground crops as well as all tall trees: Transport Lock For Lever - It avoids hose coming out of the reel during transport
- Boom can be used for ground crops where tractor entry is possible: Handgun - Imported Italian handgun with adjustable stroke for better coverage as per crop
- Uniform coverage giving best crop protection: Safety Device (PRV) - Reduces excess pressure from the pump
- 5-mode controller and 2-way nozzles provide accurate delivery of chemicals:
- Dual Filtration - Suction filter 50 mesh & brass filter 80 mesh
- Easy Height Adjustment - up to 6 ft. from ground
- Adjustable Nozzle Spacing - as per crop
- Works on 45 HP and above
