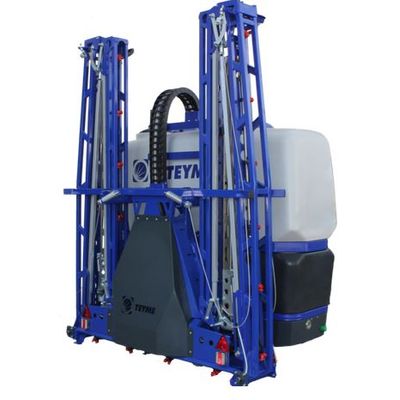

Teyme - Model HS 1 - Boom Sprayers
Highly performing herbicide sprayer . Huge Effectiveness. Bigger Productivity.
ANKS
Long resistance tanks made of high density polyethylene.
- Main tank
- Sanitary water tank
- Rinsing tank
FRAME
Oversized frame with compact and highly tough structure. Fully adapted to the new design of the machine to achieve the highest stability and lightness with a minimal weight.
STIRRERS
Two levels of mixing (pressure/return), which warrant a steady and homogeneous mixture.
FILTERS
3 filtering levels, tank entry, suction and pressure.
BOOMS
Hydraulic booms with trijet nozzle-holders and mechanical blocking device.
- 12m x 2 sectors
- 14m x 2 sectors
- 15m x 3 sectors
- 16m x 3 sectors
- 18m x 3 sectors
- 21m x 3 sectors
Individual opening by sectors.
Self-leveller working by a pendular device.
Self-returning boom end when colliding with an obstacle.
Stable, resistant and easy-to-fold spraying booms with steel reinforced structure and aluminium ends to keep its solidity.
