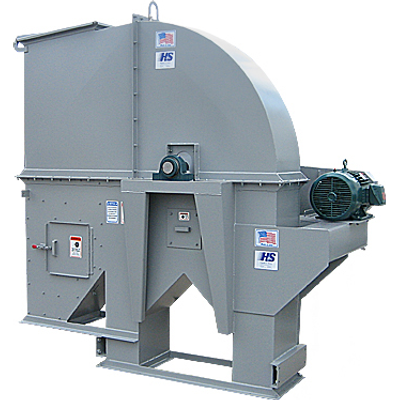

Hayes & Stolz - Bucket Elevator Head Sections

SHARE

Hayes & Stolz designs their Bucket Elevator head and cap profiles to optimize the discharge efficiency by carefully matching products’ material characteristics to the appropriate elevator bucket style and speed, and by analyzing the discharge trajectory over the head pulley. The head sections feature an adjustable throat plate to ensure proper discharge, and a lagged crowned face head pulley mounted with outboard pillowblock bearings. Jacking bolts are located under each head shaft bearing for shaft leveling during installation. UHMW shaft seals make the assembly weather and dust-tight where the shaft penetrates the cap. For ease of maintenance, the head sections come with inspection and access doors in critical areas and the cap features a split design for easier handling. Available options for customization can be found under the Features/Options tab.

Most popular related searches
bucket elevator

Hayes & Stolz Bucket Elevator head sections and caps are designed to provide efficient discharge of product. By determining various products’ material characteristics and matching them to the proper elevator bucket style and elevator operating speed, and by analyzing the discharge trajectory of the product over the head pulley, Hayes & Stolz has designed their Bucket Elevator head and cap profiles to maximize discharge efficiency. An adjustable throat plate is provided to further ensure proper discharge.

The lagged crowned face head pulley is mounted with outboard pillowblock bearings with jacking bolts located under each head shaft bearing for leveling the shaft at installation.

UHMW shaft seals are provided where the head shaft penetrates the cap to make the assembly weather and dust-tight.

For convenience, Bucket Elevator head sections are furnished with inspection and access doors located in the discharge throat and pulley lagging maintenance areas. The cap is a split design for easier handling during maintenance operations.
