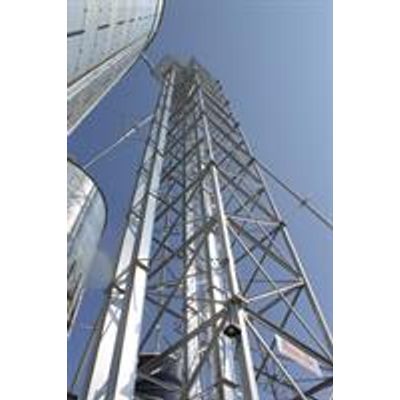

Honeyville - Bucket Elevator Support Towers
Honeyville Bucket Elevator Support Towers are constructed of structural square tubing in 20` vertical modules with optional 5`, 10`, or 15` modules at the top. These towers are available in standard sizes of 6` x 6`, 8` x 8`, 10` x 10`, 12` x 12`, 14` x 14`, and 16` x 16`. Stairways are available on 10` x 10` and larger towers.
Most popular related searches
bucket elevator
grain handling system
grain handling
grain bucket elevator
grain equipment
grain bucket
grain elevator
- Jig welded construction for accurate, bolted, on-site assembly
- 20` vertical modules with optional 5`, 10’, or 15’ modules at the top
- Hot dip galvanizing on all structural weldments and members
- Five standard models with square footprints and optional rectangular models
- Cross bracing with horizontal struts standard on all four sides
- Conveyor access diagonal bracing available
- Bucket Elevator supporting brackets clamp onto the vertical tower columns to simplify mounting to trunking cross braces and flanges
- Structural steel components are greater than 1/8" thick allowing on-site attachments or modifications
- Standard CAD drawing plans include 3D Isometric views
- Engineered for 105 MPH wind loads based on ASCE 7-10 with optional upgrades to achieve higher ratings
- Ladder & safety cage on the exterior of the tower
- Heavy duty, switchback stairways with grip strut step treads available with 10’ x 10’ and larger towers
- Top mounting and internal platforms with connection to ladder or stairway
- Multiple elevator mountings inside the tower
- Single elevator outside tower mounting
