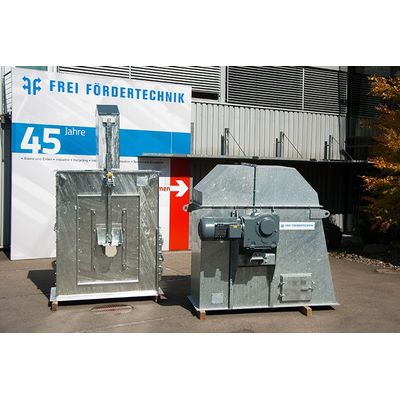

Frei - Bucket Elevators
Our bucket elevators are used for the vertical and continuous transport of bulk material. The bulk material is transferred to the buckets at the bucket conveyor inlet. The buckets lift the bulk material and transfer it to the downstream conveyor system at the bucket conveyor discharge. With our cost-effective standard designs and individual special constructions, we meet all customer requirements.
Most popular related searches
- Track maintenance/crushed rock cleaning
- Paper industry
- Sugar factories
- Brickyards
- Foundries
- Biomass power plants
- Sewage treatment plants
- Sawmills
- Compound feed plants
- General materials handling
- Belt widths: 315, 400, 500, 630, 800 mm
- Conveying height: up to approx. 80 m
- Gradient: 90°
- Conveying speed: 1.1 – 1.8 m/s
- Flow capacity: up to approx. 600 t/h
- Drive: slip-on gear motor
- Belt design: Galvanised steel sheet construction
- Special design: makes that vary from the aforementioned specifications are available on request
- Feed/discharge hopper
- Eject plate
- Casing with maintenance doors
- Weight box
- Maintenance platform
- Bucket with/without rubber floor
- Bucket with/without edge reinforcement
- Speed monitor
- Off-track detector
