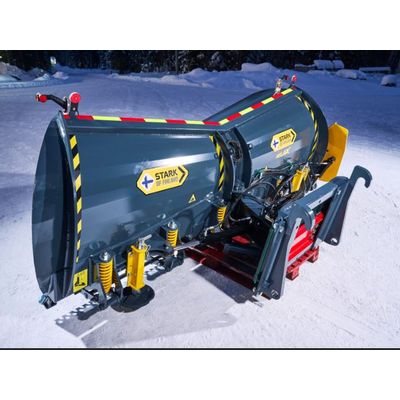

STARK RELAX - Butterfly Plow

The RELAX butterfly plow is ideal for cleaning footpaths, cycle ways, and streets in urban areas, especially in places where there is a risk of hitting obstacles under the snow.

The plow boasts excellent snow throwing properties due to the optimal wing geometry and blade angle. The plow’s sturdy construction, advanced floating and optimized weight make it stable and easy to push.

Utilizing FLOATING FRAME technology, the plow floats both vertically and horizontally, which ensures a top-quality plowing result also at high speeds.

When plowing, the plow slides steadily on the rotating and infinitely adjustable support legs. Formation of packed snow is minimal due to its optimal blade angle and center of gravity.

The plow is turned by two cylinders, which enables a plowing angle of ± 38 °. Should the plow collide with something, the plow hydraulics are protected by a pressure relief valve.

Thanks to the RELAX blade system, the blade remains locked while plowing. Thanks to this, snow gets removed evenly and significantly less packed snow is formed.

When the blade hits an obstacle, the blade system lock is released, the blade body turns backwards, and the blade gets over the obstacle. This protects the driver, the attachment and the base machine from collision damage.

A plow with the RELAX blade system can be pushed more forcefully against the ground to remove packed snow.

All RELAX butterfly plows are equipped with various bolt-on STARK FIT adapters. The adapters can be easily changed to suit different basic machines.

The optional hydraulic snow stopper ensures a top-quality plowing result on roads with many intersections. The plow features a bracket for the snow stopper, allowing installation without welding.

The snow stopper also requires one double-acting hydraulic block or solenoid valve.

Available models BP 3400 R, BP 3700 R.

RELAX – UNIQUE PATENTED BLADE SYSTEM
The RELAX blade system keeps the plow blades locked. The plow´s trace is smooth and the formation of the packed snow is considerably less.
When the blade strikes an obstacle, the blade system lock is released, the blade body turns backwards and the blade passes over the obstacle.

This protects the driver, implement and base machine from collision damage.

The plow with the RELAX blade system can be pressed against the plowed surface, which allows removal of the packed snow.

How the RELAX blade system works:

• The blade body is mechanically locked by three joints (Figure 1.).
• As the load increases, the lock is released and the blade body makes a rapid and extensive evasive movement (Figure 2.).
• When the load is released, the spring returns the blade body back to the lock (Figure 1.).
• The blade release force can be infinitely adjusted by changing the angle of the joints (Figure 3.).

The greater the angle between the joints (Figure 1.), the lighter the lock will open. WHEN TIGHTENING THE NUT the release force DECREASES, WHEN LOOSENING THE NUT the release force INCREASES (Figure 3.).
