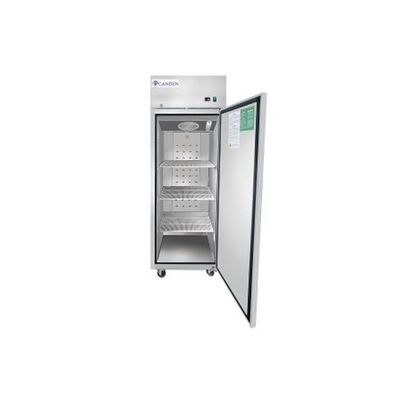

Canden - Model IRC20 -Insect Rearing Chamber
The IRC20 one door insect rearing chamber is used by scientists in many research areas, from genomics to clinical epidemiology and species conservation. This chamber not only can be used in drosophila research but also in many types of insect growing projects. Chamber features all stainless steel interior and exterior construction with 2″ polyurethane CFC free insulation.
- Stainless Steel Exterior & Interior
- Maintains temperatures between 10°c to 40°c
- Temp and Humidity controller that displays both PV/SV
- LED interior light with programmable digital diurnal timer
- Recessed Door Handle
- Door locks standard
- 2″ access port
- Magnetic door gasket standard for positive door seal
- Pre-Installed 4″casters with bumper brakes
- Three (3) Pre-Installed shelves per section
- Back wall plenum for even distribution of conditioned air
Chamber uses thermoelectric assembly for heating and cooling. This type of cooling/heating system completely eliminates need for conventional refrigeration system and failures due to mechanical components such as compressors thereby drastically increasing the life expectancy of each chamber. Maintenance cost is also lowered by the thermoelectric/Peltier driven heating/cooling system. The chamber is quiet while in operation. Chamber temperature set points are tightly controlled using PID controller. Relative humidity set points are achieved via additive ultrasonic humidification. A humidifier is mounted on the back of the chamber. Refer to humidifier manual for maintenance and water line hook up.
- Panel mount-usb cable interface
- Simplifies Controller Management with Easy-to-Operate Graphic User Interface,LED display, Autotune capability
- Provides Access to Advanced Scripting Capabilities
- Save Controller Parameters
- Access Stored Parameters
- Log Controller Data
- Control access via software
- 2 programmable alarm
- IP-65 Panel (front panel splash proof)
- CRC protocol correction build in for error free communication
- Visually interpret thermal data
- Set multiple target temperatures and program steps for advanced applications like thermal cycling
- Save and load script parameters from stored files on your disk drive
- Multiple jumps and loops function for complex testing profile
- 3% accuracy over the entire input range
- Displays both the set point and actual relative humidity
- On/off controller is standard. if you need PID controller with tighter control up to 1% RH- please contact us.
- A fast response, capacitive relative humidity sensor is included. It has high accuracy, high reliability, consistency
- Dual alarm outputs with 10+ activation methods/situation
- High brightness, large LED display – easily read from distance
