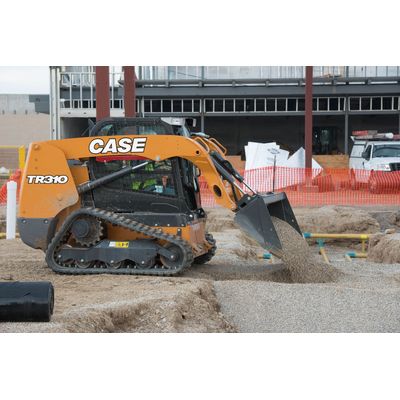

Case - Model Alpha Series - TR310 -Compact Track Loader
The TR310 is the most powerful and efficient medium-frame compact track loader in our lineup. Building upon the strength and popularity of our TR270, the TR310 offers best-in-class power thanks to larger lift cylinders as well as a maintenance-free Tier 4 Final emissions solution. It`s also designed with wider tracks to improve stability and lower ground pressure down to an impressive 5.0 psi (32.5 kPa). More strength and stability – just what operators have been asking for.
With S’Wave tracks that measure 15.75 in (400 mm) across, the TR310 has a total width of 74.3 in (1 888 mm). This wider stance provides excellent stability, better tractive effort and a low ground pressure of only 5.0 psi (32.5 kPa). The TR310 offers best-in-class torque, breakout and auxiliary flow, giving it the versatility to power a wide range of attachments. And its radial lifting path provides maximum strength for digging and pushing applications.
Maintenance-Free Tier 4 Final Emissions Solution
The TR310 incorporates a maintenance-free DOC-only Tier 4 Final emissions solution that requires no fluids and no diesel particulate filter. Further improving uptime and reducing hassle is a large 19.5-gallon (73.8 L) fuel tank that enables the loader to run all day without refueling.
Comfort and Visibility
Thanks to a low door threshold, the industry’s thinnest side screens and a large rear window, the TR310 offers best-in-class 360° visibility, making it easy to see the attachment, tracks and all around the machine.
Serviceability
Routine service points are all located at the rear of the machine so you can quickly access the engine, filters, fill points and whatever you need to properly maintain and extend the life of the machine. The tracks are also designed with lifetime sealed and oil lubricated rollers and idlers. And our easy-tilt cab provides easy access for repairs to the transmission.
OPERATOR ENVIRONMENT
- ROPS/FOPS Level 1 canopy w/ side screens
- Keyed start ignition
- Tilt ROPS/FOPS
- Rear window w/ emergency escape
- Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
- Hand and foot throttles
- Alarm package – back-up and horn
- Rearview mirror
- Headliner
- Dome Light
- Top window
- Cup holder
- 12V Power plug socket
- Foot rest
- Seat pocket
- Padded seat bar w/ integral armrests
- Loader control lockout system
- Electric parking brake control
- Operator’s compartment floor cleanout
- Proportional auxiliary hydraulic control – on joystick
- Advanced Instrument Cluster with: Digital hour meter, Tachometer Fuel level LCD bar graph w/ alarm, Diagnostic features, Security lockout
- Warning lights with alarms: Engine coolant temperature, Engine oil pressure, Engine malfunction, Hydraulic charge pressure, Hydraulic filter restriction
- Hydraulic oil temperature: Critical system stop, Engine system, Hydraulic system, Electrical system, Diagnostic system
- Warning alarms: Battery voltage – plus display, Oil service
- Indicator light: Engine preheat, Parking brake, Seat bar reminder
DRIVETRAIN
- 2-speed hydrostatic four wheel drive
- SAHR disc parking brake
ENGINE
- FPT F5H FL463 A*F001
- 207 CID (3.4 L) Turbo
- Tier 4 Final Certified
- Particulate Matter Catalyst (PMC)
- High Pressure Common Rail (HPCR) fuel injection
- Horsepower: Gross: 74 hp (55 kW) | Net: 68 hp (51 kW)
- Peak torque 232 lb·ft (314 N·m)
- 120 amp alternator
- Dual element air cleaner
- Organic Acid Technology (OAT)
- Anti-freeze solution to -34º F
- Fuel tank - 19.5 gal (U.S.)
- Over and under radiator and oil cooler
- 3-stack after cooler/radiator/oil cooler configuration
- Glow plugs
- Integral engine oil cooler
- Fuel filter with water trap
- 925 CCA 12V battery
- Master electrical disconnect
LOADER
- Manual attachment coupler
- Radial lift geometry
- Loader lift arm support strut
- SAE operating load: 3,100 lbs
- Tipping load: 6,200 lbs
HYDRAULICS
- Auxiliary hydraulics: @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
- 6 micron oil filtration system
- 3-spool loader control valve
- Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
- Hydraulic circuit pedal lock
- Auxiliary function lockout override
- Loader lift lockout override
- Heavy-duty hydraulic oil cooler
- Loader arm float position
- Loader function lockout system
TRACKS
- HiQual S-Wave Tracks
OTHER STANDARD FEATURES
- Halogen lights - 2 front, 2 side, 2 rear flood
- Heavy duty front lights
- Pre-wired for rotating beacon
- Lockable service access hood
- Single-point daily servicing
- Rear tail lights
- Remote oil drain
- Remote oil and fuel filters
- Block heater
- Debris ingression sealing
- Mounting points for add-on counterweights
OPERATOR ENVIRONMENT
- Enclosed cab:
- Fully sealed and pressurized – FSP
- Glass door with wiper and washer
- Sliding side windows – removable
- Ventilation system with integrated heater
- Heater and air conditioner
- AM/FM radio with 2 speakers
- Keyless start ignition
- Electro-hydraulic controls: For drive/steering, loader functions, Switchable between H and * ISO patterns, Adjustable sensitivity of controls
- Mechanical hand controls
- Hand controls the loader drive function and foot controls the bucket and boom
- Non suspension seat
- Deluxe cloth, air suspension seat, with heater and lumbar support
- Open cab interior trim package
- Demolition cab door with polycarbonate
- FOPS Level 2
- Heavy duty rear Door
HYDRAULICS
- High-flow auxiliary hydraulics – combined: @ 3,050 psi (210 bar) – 32.4 gpm (122.6 L/min)
- Second auxiliary hydraulics
- Hydraulic one-way self-leveling
- Ride control
LOADER
- Auxiliary front electric control
- Hydraulic attachment coupler
DRIVETRAIN
- 1-speed hydrostatic four wheel drive
OTHER
- Language decals
- Factory-installed tires
- Buckets
- Bolt-on bucket cutting edges
- Bolt-on heavy-duty bucket spill guard
- Special paint
- Offsite service arrangement
- Telematics
FACTORY SUPPLIED ATTACHMENTS
- Add-on counterweights
- Road lights
- Rotating beacon
- Four-corner LED strobe
- Bolt-on heavy-duty bucket teeth
- 48 in (1.22 m) pallet forks
SERVICE PARTS
- 3 inch (76.2 mm) retractable seat belt
Tier 4 Final
HPCR, EXTERNAL CEGR
Why this solution: This Tier 4 Final solution requires no new actions or upkeep and delivers best-in-class performance so operators can focus entirely on the work at hand.
How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. This lowers combustion temperatures and dramatically reduces NOx emissions, but produces more particulate matter.
The additional particulate matter is managed by the Diesel Oxidation Catalyst (DOC). The DOC converts emissions into neutral gases and automatically burns it off using heat from the exhaust.
What this means to you: This solution is a maintenance-free emissions solution, requiring no costly DPF (Diesel Particulate Filter) to replace and no new fluids to add.
Powered by an FPT engine.
