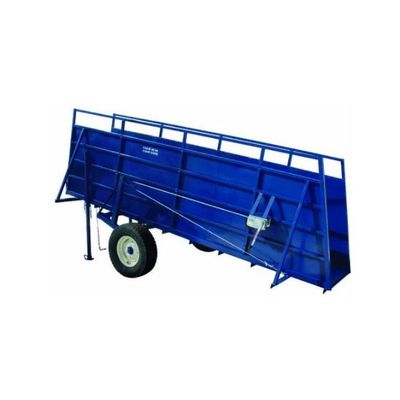

Te SlaaModel 16 Foot - Cattle Portable Loading Chute

SHARE

A loading chute designed for cattle and large livestock. The primary framing on this chute consists of 1 1⁄2″ 14-gauge square tubing with 16-gauge sheet metal sides. The floor of the ramp is constructed of 2″ x 12″ wood flooring with steel traction bars. A heavy duty tongue is made from 3″ x 3″ square tubing. It’s one of only a few loading chutes that can adjust height levels from truck beds to gooseneck trailers.

Most popular related searches
  • 48″ of sheet metal, 60″ overall high side
  • 16′ length
  • Loading heights up to 5′
  • 58″ High 48″ of sheet metal, 60″ overall high side
  • 1″ round cleats spaced every 12″ that can flip up for wash out
  • Telescoping tongue slides in for loading and unloading, and out for transport
  • 2 heavy-duty stands help support the weight with pads that swivel for uneven ground
  • Independent flip-outs to fill the space between the chute and the trailer
  • 16″ tires
