CBI Manufacturing

- Grain Box/Silage Box

From

0

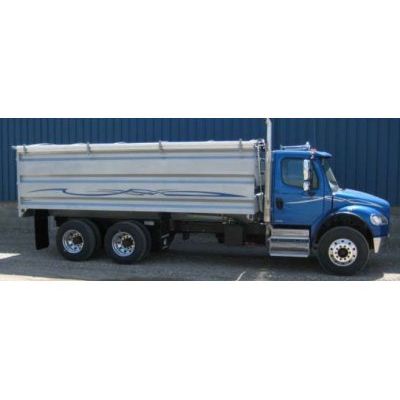

The CBI Unibody Box has all the features of a world-class body. Featuring an all welded construction provides a lifetime waterproof seal. With no cross sills to hold mud and salt the CBI grain/silage box provides extended box life. With the option of 3 different tailgates (3 piece allswing, 2 piece allswing, and hydraulic) there is one for every application. Standard high tensile steel construction. The Unibody design has been proven and used in all aspects of transportation from 8' utility box to a 35' unibody end dump trailer.

8.25' x 8.5' x 20' x 60' CBI Unibody Box

  • (5 Year Structural Warranty)
  • 7 GA High Tensile Tipsills
  • 12 GA Walls, 3' x 3' Posts
  • 3/16' Smooth Floor
  • All seams welded solid with no chalking

Hydraulic Tailgate

  • Grease nipples on all hinges
  • Cam Lock Metering Gate
  • All seams welded solid with no chalking
  • Bottom edge tapered to allow for easy cleaning
  • 2' - 2.5' Cylinders

Hoist (7 Year Warranty)

  • Harsh Hoist J100
  • 45-50 Degrees of Lift
  • Rear Hinge
  • Safety Props x2
  • Williams H98 Piston Pump
  • 40 QT Tank
  • Double Valve

Finish (3 Year Warranty)

  • Shot Blast, Wash
  • High Zinc Primer
  • Spectrum Powder
  • Baked on Finish 475 Degrees F

Box Options

  • Mud flaps, Antisail Brackets
  • Windows Front & Back
  • Extra Rear Window
  • Outside Ladder
  • Inside Ladder
  • Outside Weld On Ladder Rungs
  • Rear LEO Ladder
  • 66' Sides
  • 69' Sides
  • Grain Fertilizer Split

Lighting Options

  • Backup, Signal Clearance Lights
  • LED Light Upgrade
  • Extra Lights
  • Side Oval and Rear
  • Inside Lights

PTO Options

  • Hot Shift PTO (Automatic Transmission)
  • Hot Shift PTO (Meritor Transmission)
  • Air Shift PTO (9,10,13,15,18 Speed)
  • Synthetic Transmission Oil (CD 50)

Hoist/Hydraulic Options

  • Direct Mount Pump Upgrade
  • Move Air tanks to fit Hydraulics System
  • Hoist Flow Restrictor Pressure Gauge

Control Options

  • Cab Air Control
  • Driver's Side Weatherproof Air Control
  • Passenger's Side Weatherproof Air Control
  • Brehon Remote for Metering Gate and Hoist
    • Installed
    • Flow Restrictor
  • Brehon Remote for Metering Gate Only
    • Installed

Powder Coat Options

  • Powder Coat Stock Colour
    • Any CBI Colours
    • Add metallic to any colour
  • Colour Options

Tarp Options

  • Electric Tarp (Michel's Select Electric)
  • Select Tarp (Michel's Select Sidewinder)
  • Roll Up Tarp (Michel's Load Lock)
  • Offset and Quick Release Brackets

Truck/Installation Options

  • Install Box
  • Install Hoist & Hydraulics
  • Install Tarp
  • Install PTO
  • Pintle Hitch Complete
    • (Air, Electrical)
  • Shot Blast and Paint Frame
  • Wrap Around Fenders
    • Installation
  • Tool Box (36' Weatherproof)
    • Installed
  • Frame Stretch
    • Price depending on frame dimensions, drive lines
      • Single or Double Frame
      • Gloves (If required)
      • Lifetime Warranty
  • Remove Existing Flat Deck or Box
  • Remove 5th Wheel
