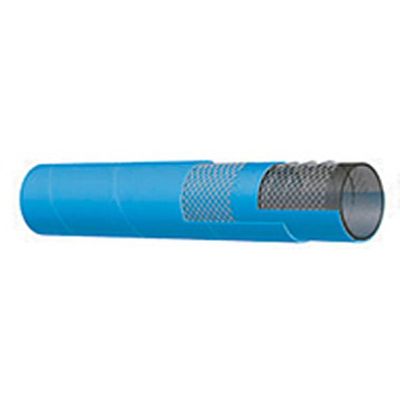

Kuriyama Alfagomma - Model T509OE075X100 -Chemical Industrial Rubber Hoses

Cover
Blue EPDM – abrasion and ozone resistant

Reinforcement
Synthetic textile cords with 4 highly flexible steel helix wires

Tube
Transparent UHMWPE (Ultra High Molecular Weight Polyethylene)

Working Pressure
Constant Pressure – 16 Bar (240 PSI)

Temperature1
-4 to 150 ºF-20 to 65 ºC

Branding
ALFAGOMMA – ITALY T509 16 BAR (240 PSI) – UHMWPE CHEMICAL – S & D (in orange letters)

Standard Length
100 ft

• Legend Notes Click on question mark icons ()for additional information.
• Series T509OE
• Nominal I.D. 0.750 in19.00 mm
• Nominal O.D. 1.220 in31.0 mm
• Max Rec. WP 240 psi
• Vacuum HG 27 inHg
• Bend Radius 7.5 in
• Min. Bend Radius 7 1/2 in
• Weight 0.41 lbs/ft
• Application / Material Conveyed Agricultural Fertilizers/Chemical Solutions Chemical/Solvent Transfer FDA Food/Liquid Chemical Transfer
• Packaging Coils
• Type Chemical Industrial Rubber Hose
• Style UHMWPE Hose
• Reinforcement Material Synthetic Textile Cords with 4 Highly Flexible Steel Helix Wires
• Color Blue
• Medium Temperature [Min] -4 ºF-20 ºC
• Medium Temperature [Max] 150 ºF65 ºC
