Iseki - Model HJ Series -Combine Harvester

SHARE

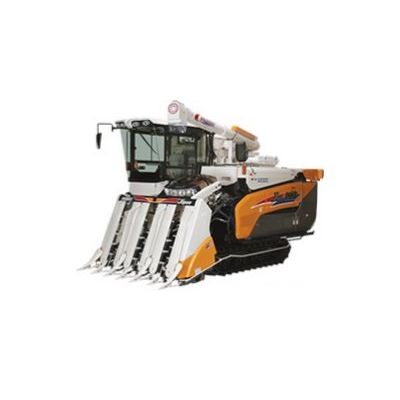

Combine harvester HJ6120 named "Japan" is the opening of new generation ISEKI combine which gave Japanese pro-farmers a impression by the appearance, high precision, performance and durability. In response to professional expectation under the severe condition, reaper unit adopts a Y character type conveyance method of cut paddy. It also enables shifting of pick up speed of paddy without stopping a combine during work.

Most popular related searches
harvesting combine
harvesting system
reaper
threshing
thresher

120ps high power, common rail engine can be controlled precisely, which brings high efficient and environment-friendly harvesting.

  • Water cooled, 4-cylinder 16 valves DOHC
  • Common rail with intercooler
  • Diesel with turbo charger
  • Max output: 120ps

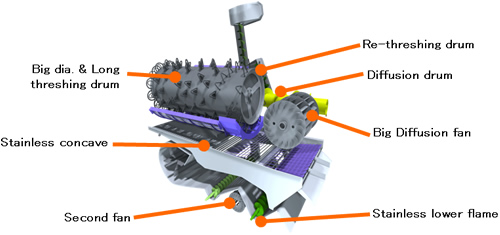

With only ISEKI`s big feature, "Twin-eight-thresher" system with three drums provide with efficient threshing and enable 2.0m/s operating speed.

Levers and monitor are located on best position by work to concentrate operation and reduce the operator`s fatigue. "I-T.A.C.H."(ISEKI Transmission Active Control Handling System) for quick turning and easy handling realizes the professional operability.

Deluxe cabin with bigger curved surface glass and big halogen working rumps improves visibility and operator`s comfort even after dark.

Full opening system allows easy and speedy maintenace. Not only access to thresher unit by opening cover, operator can also access to engine and reaper easily by opening cabin and reaper unit.

Dimensions
Overall Length (mm) 4,730
Overall Width (mm) 2,240
Overall Height (mm) 2,680
Weight (kg) 4,785

Engine
Number of cylinder 4
Displacement (cc) 2,999
Output (ps/rpm) 120/2,500
Fuel tank capacity (l) 100

Traveling System & Equipments
Crawler width (mm) 550
Crawler grounding length (mm) 1,825
Crawler tread (mm) 1,150
Ground pressure (kg/cm2) 0.236
Number of speed range 2
Working speed (m/s) 0-2.00
Traveling speed (m/s) 0-3.11

Reaping section
Reaping row 6
Reaping width (mm) 1,950-2,025
Cutter bar width (mm) 1,990
Applicable crop length (mm) 550-1,300

Threshing section
Threshing method Under feeding axial flow type
Threshing drum Dia.x width (mm) 446 X 1,250
Re-threshing drum Dia.x width (mm) 76 X 1,030
Diffusion drum Dia.x width (mm) 120 X 820
Grain tank capacity (l) 2000
