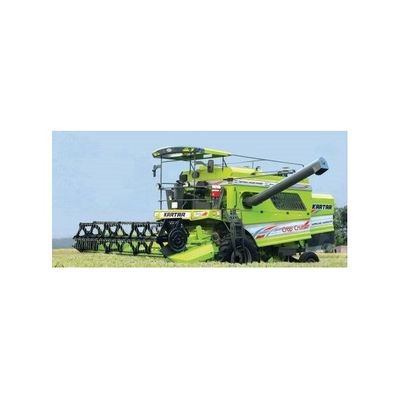

Kartar - Model 4000 -Combine Harvester
Using our years of experience in this domain and advance technology, we are involved in providing effective KARTAR 4000 4x4 combine harvester. It is manufactured from the high standard raw materials under the supervision of qualified experts as per the set industrial norms. This KARTAR 4000 4x4 combine harvester is known for its high speed and efficient performance. It is an all-in-one solution for agricultural needs as it helps in all reaping, threshing and winnowing processes.
Most popular related searches
- Energy saver
- Speedy performance
- Less maintenance requirement
Engine
- Type Of Engine: Ashok Leyland H6 (H-SERIES )101 H.P. @ 2200 R.P.M.
- No. Of Cylinders: 6
- Cooling System: Water Cooled
Cutter Bar
- Width: 4400 mm
- Height Adjustment: Hydraulically
- Cutting Height Min.: 100 mm
- Cutting Height Max.: 1000 mm
Thresher Drum
- Dia of Drum: 600 mm
- Length of Drum: 1260 mm
- Speed of Drum: 535 to 1210 rpm
- Adjustment: Mechanically
- No. of Rasp Bars: 8
- No. of Spikes: 152
- Total Area: 46565 sq. cm.
Straw Walkers
- No. of Straw Walkers: 5
- Total Area: 46565 sq. cm.
- Concave
- Clearance Between: 16 to 39 mm
- Concave & Thresher: 3 to 16 mm
- Drum at Intel at Cutlet Adjustment: Mechanically
Cleaning
- Area: 26962 sq. cm.
- Adjustment: Mechanically
Capacity
- Fuel Tank: 380 Lts.
- Grain Tank: 2.10 m3
- Hyd. Oil Tank: 35 Lts.
Reel
- Type: Pick up
- Speed Adjustment: Mechanically
- Height Adjustment: Hydraulically
Product Details :
- Cutter Bar Width: 4400 mm
- No. Of Cylinders: 6
- Cooling System: Water Cooled
- Fuel Tank Capacity: 380 Lts.
- Grain Tank Capacity: 2.10 m3
- Number Of Straw Walker: 5
