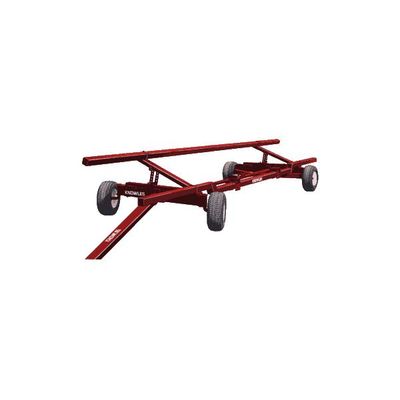

Knowles - Model CH-70 - Combine Header Transport Trailer
This new and improved transport trailer is designed to move or store all popular combine heads.Various adjustments can be made to accommodate the user`s equipment.The heavy tubular frame is mounted on the always reliable KNOWLES running gear.
Most popular related searches
- Overall length 29`
- Above ground height :
- Overall width 81"
- Upper bar 26-1/2" - 42"
- Tongue telescope 17-1/2"
- Lower bar at axle 22-1/2"
- Tongue - fixed length 138", 144" and 150"
- Lower bar with offset down 18-1/2"
- Length of upper and lower rest bars19`9"
- Lower bar with offset up 26-1/2"
- Distance between bar rests:
- Capacity 7000 lbs.
- 29"- 54" adjustable to any increment
- Weight 1130 lbs.
- Tires 20.5 x 8-10
- Two adjustable header locating pads
