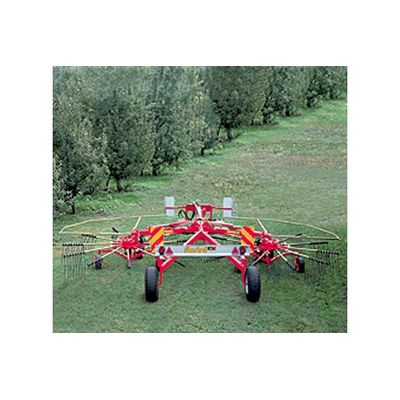

Fiorini - Model 720/800 - Combined Rake

Model 720/800 ensures quick and perfect collection, it is the machine most suitable for both hay and straw. It is a rake driven by the two lifter arms. It makes central windrow and gathers 3 windrows moving even the central one. This unit is equipped with two 11-arm oil bath rotors featuring 4 shot-peened springs per arm. Articulated rotors are driven by the carriage and perfectly follow the ground thus ensuring optimum cleaning results thanks to the 4 casters of carriage with height adjuster screw. Since rotors are separated from the frame, it is possible to use just half of the machine if necessary. The oil bath units feature a lever to advance or delay spring lift. The two steering wheels at the back are guided by the pivoting pull hook and ensure smooth handling. This machine fits CE-approved protections, 3 Cardans with clutch (of which 2 are constant velocity joints), pins, rear lighting system, reflector panels and hay canvas.
